Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 60 × 40 × 30 cm |
R35
Angle kit for Nissan R35-GTR
€2,500.00 exc. tax
Available on backorder

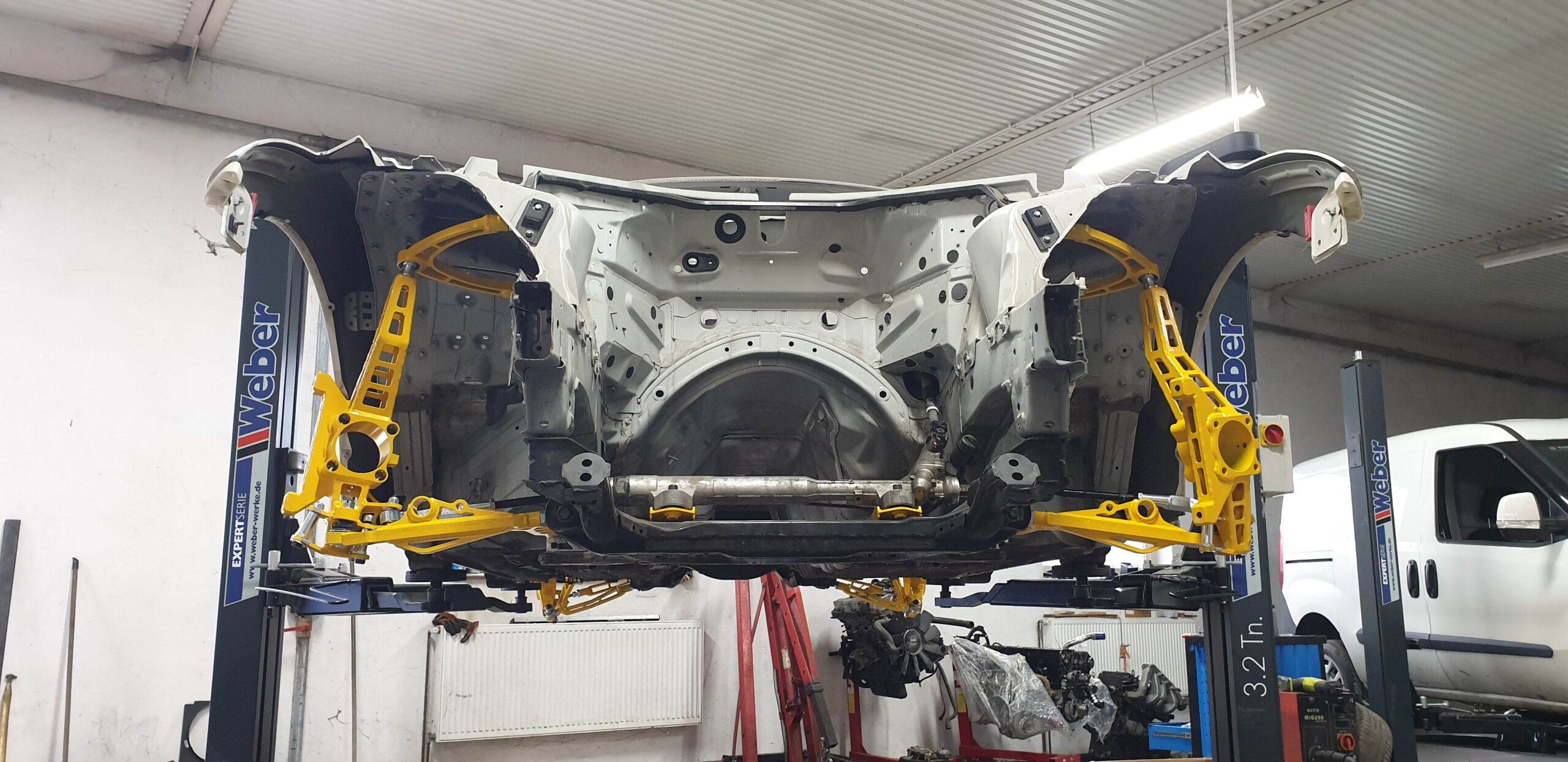

Angle kit for NISSAN R35-GTR 65 degrees.
Kit is fully adjustable:
1- adjustable ackermann

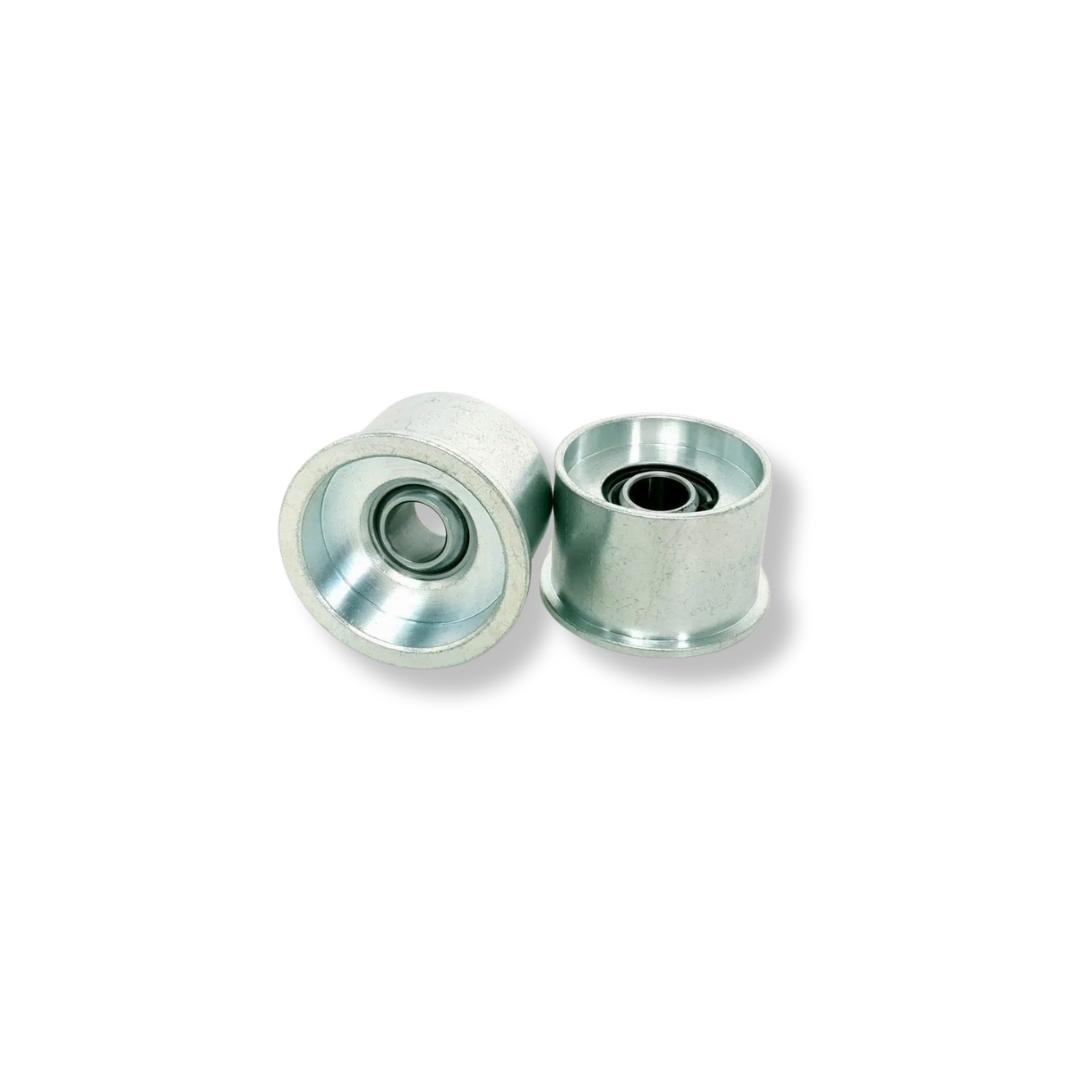

2- adjustable bumps (eccentric bushings)
3- adjustable camber
4- adjustable caster
Kit include:

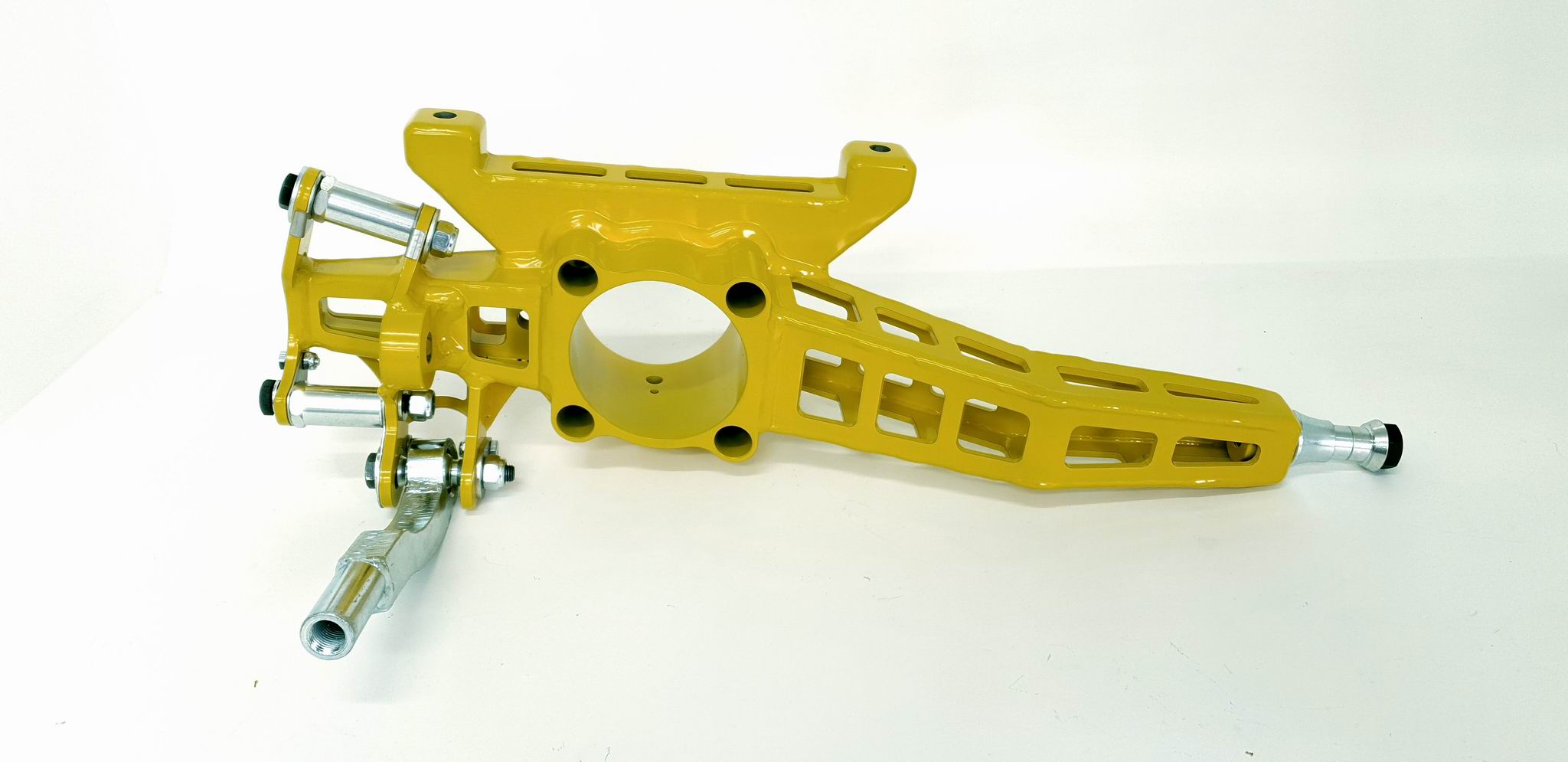

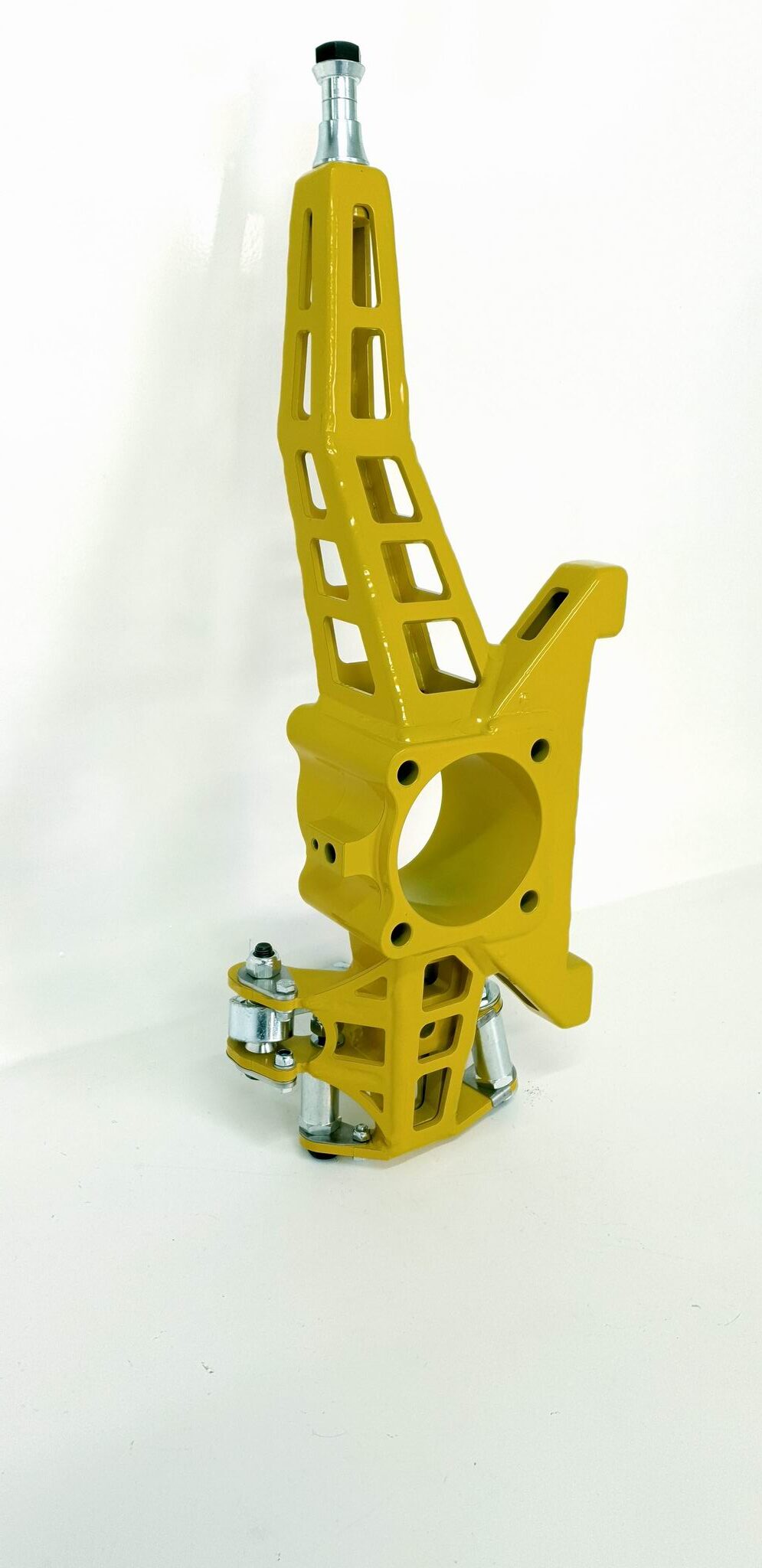

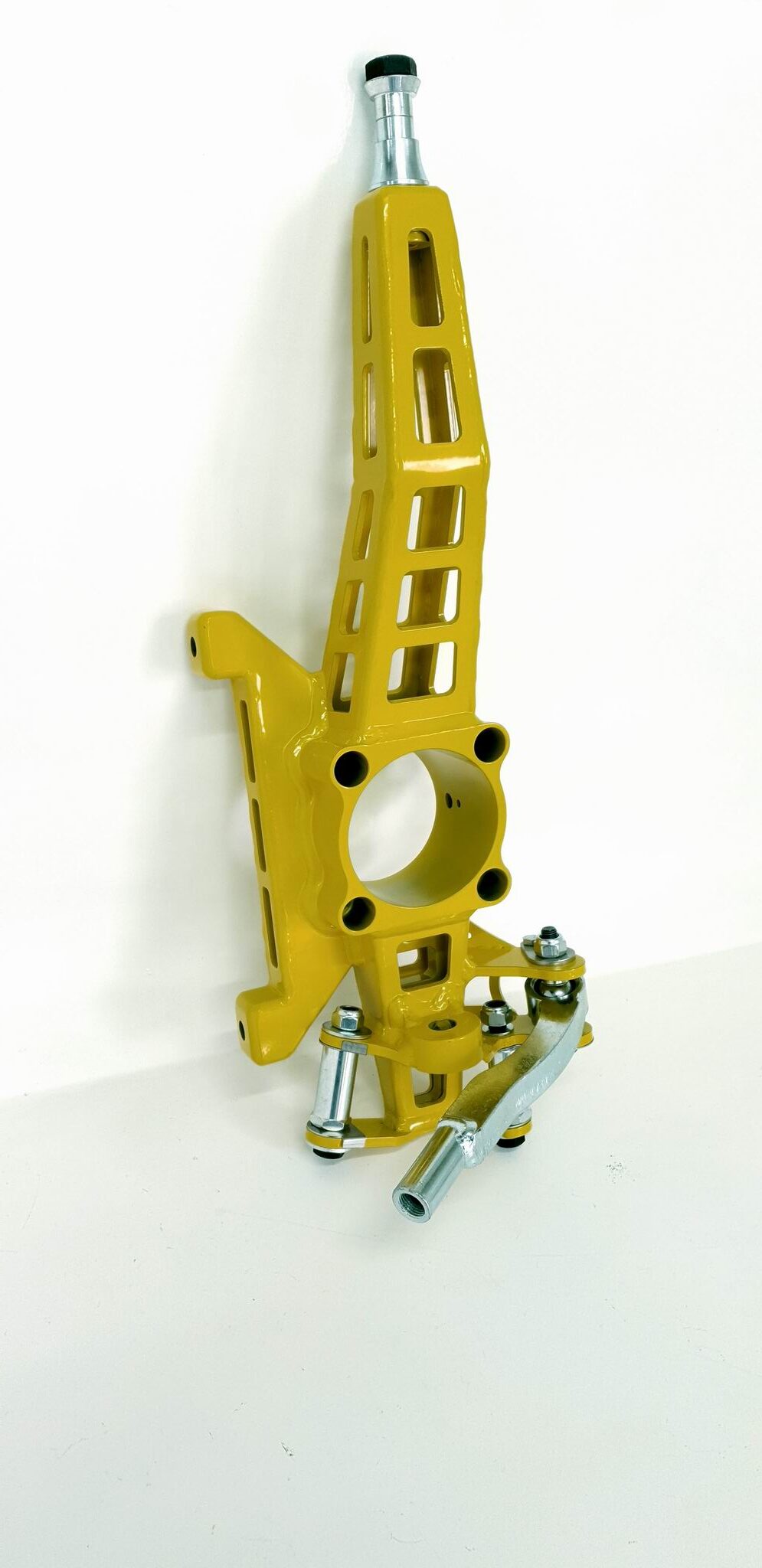

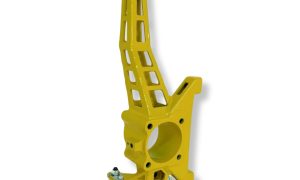

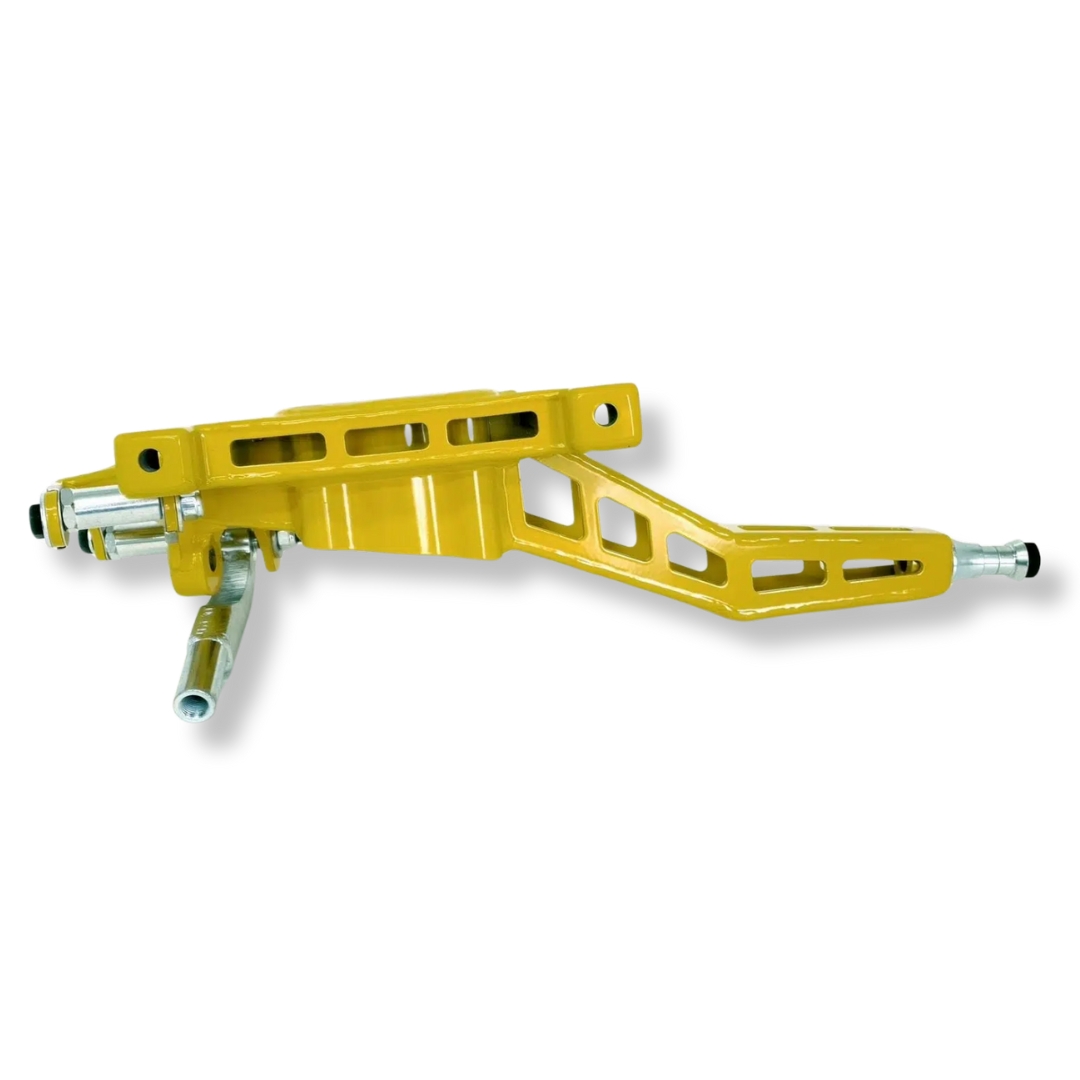

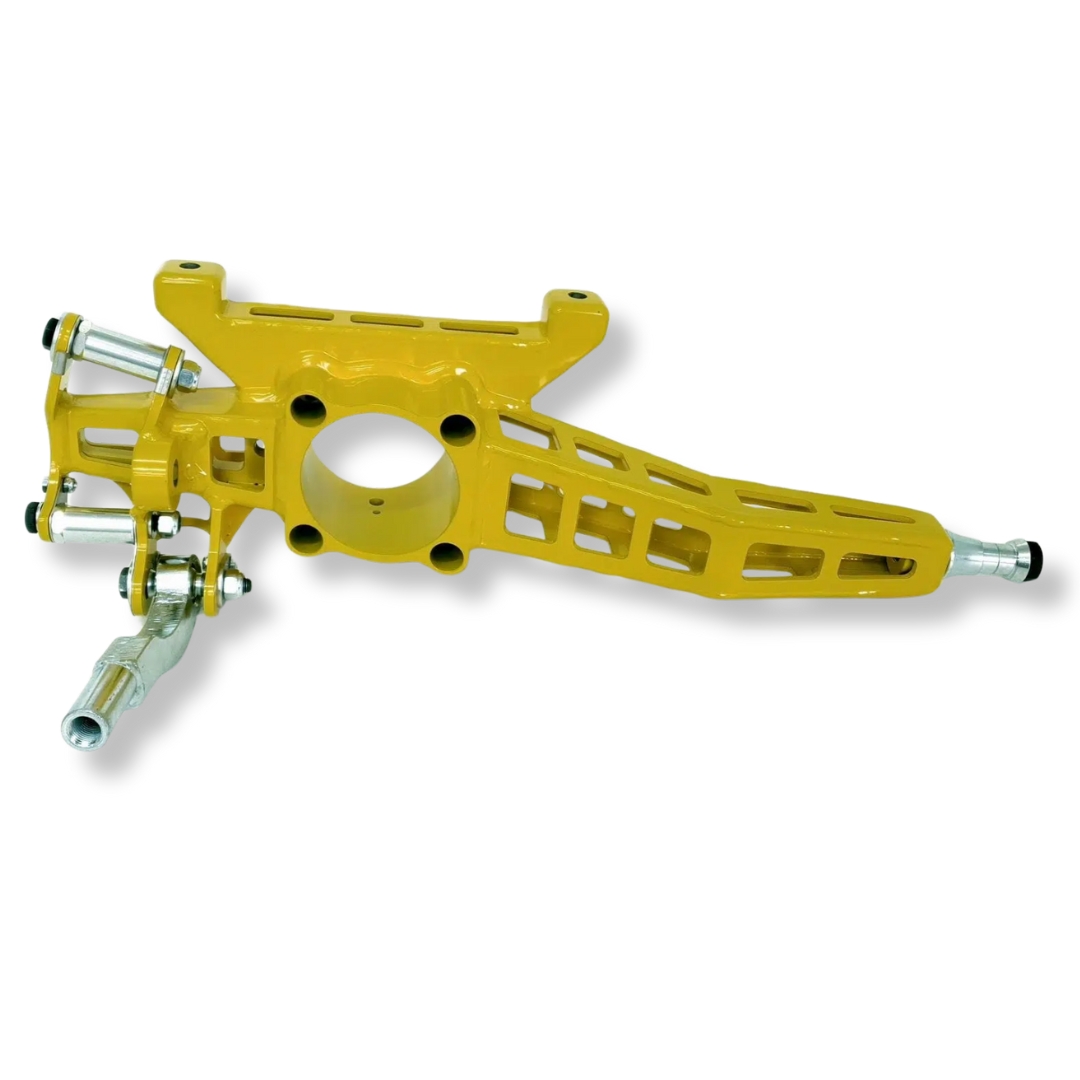

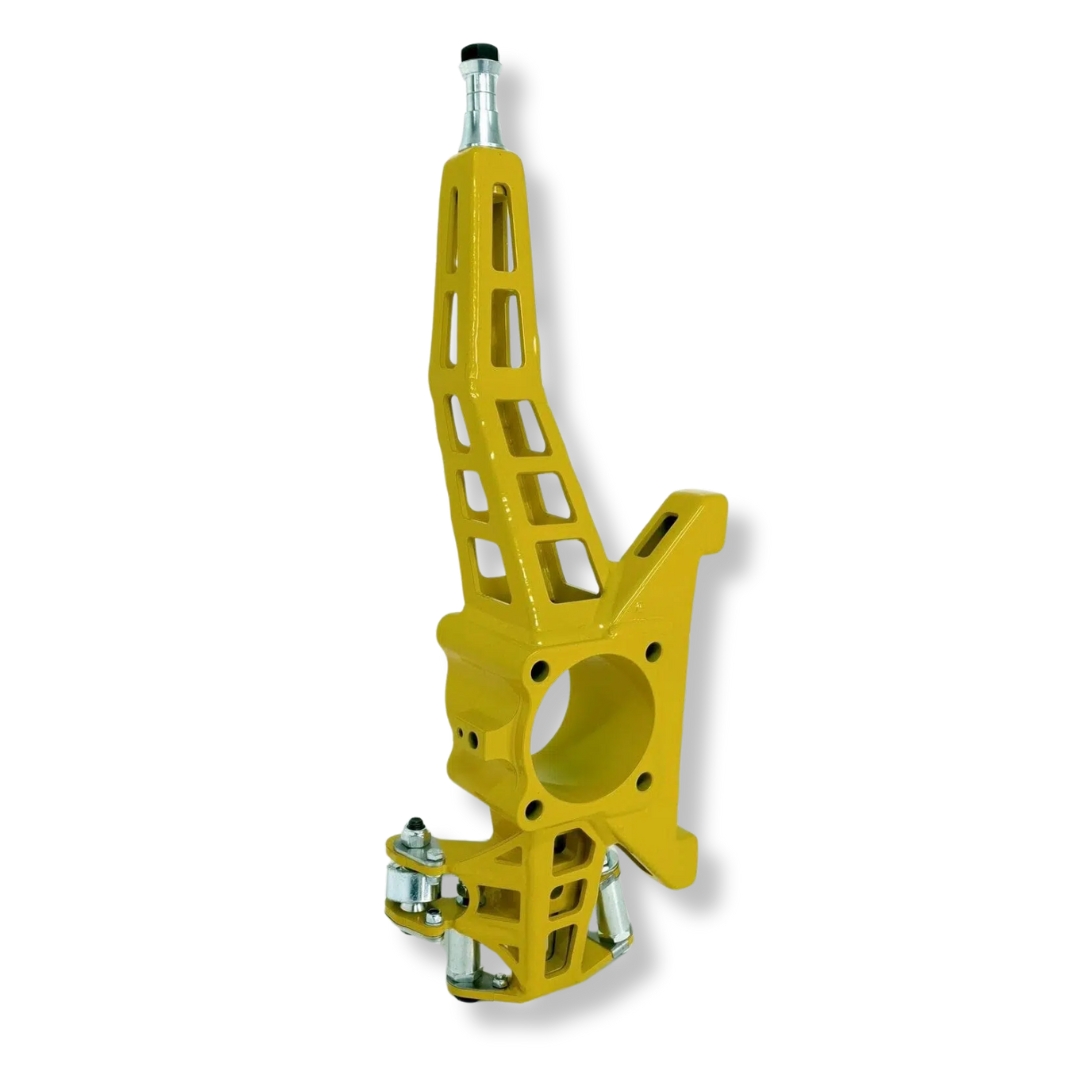

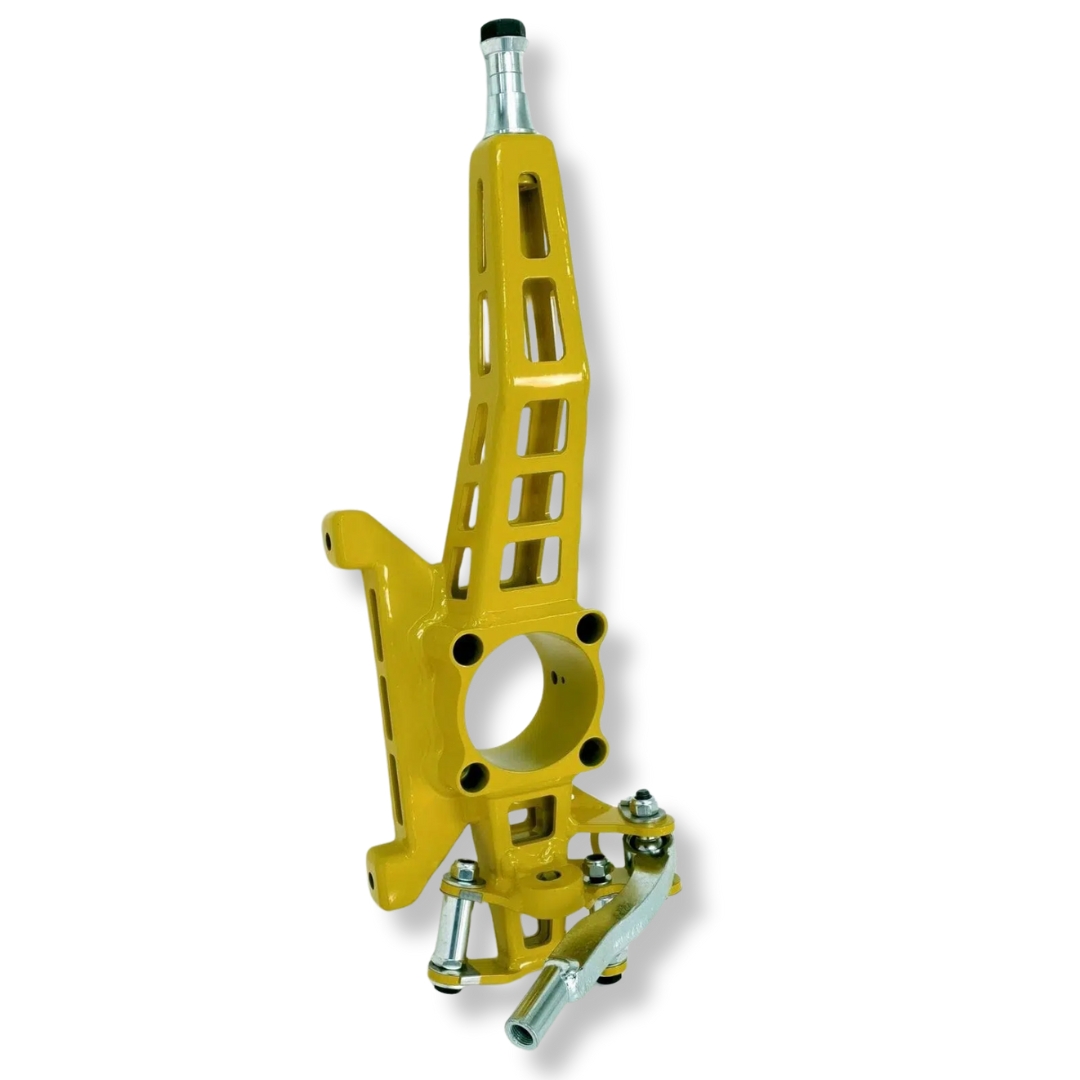

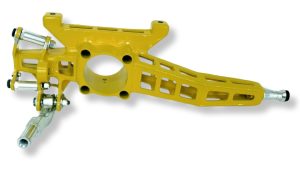

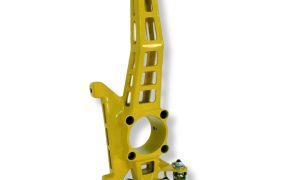

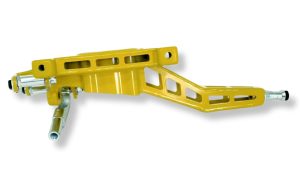

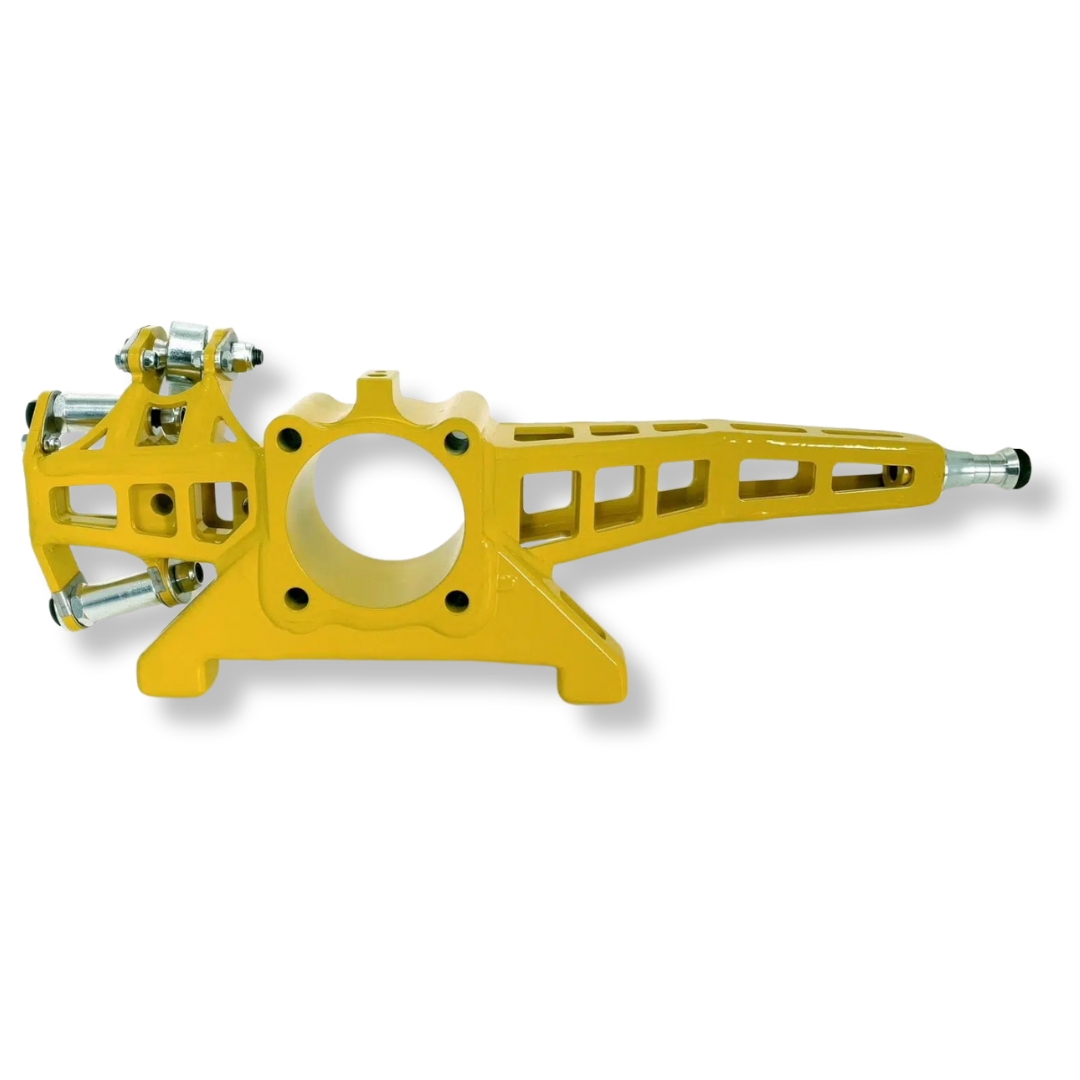

-2 knuckles

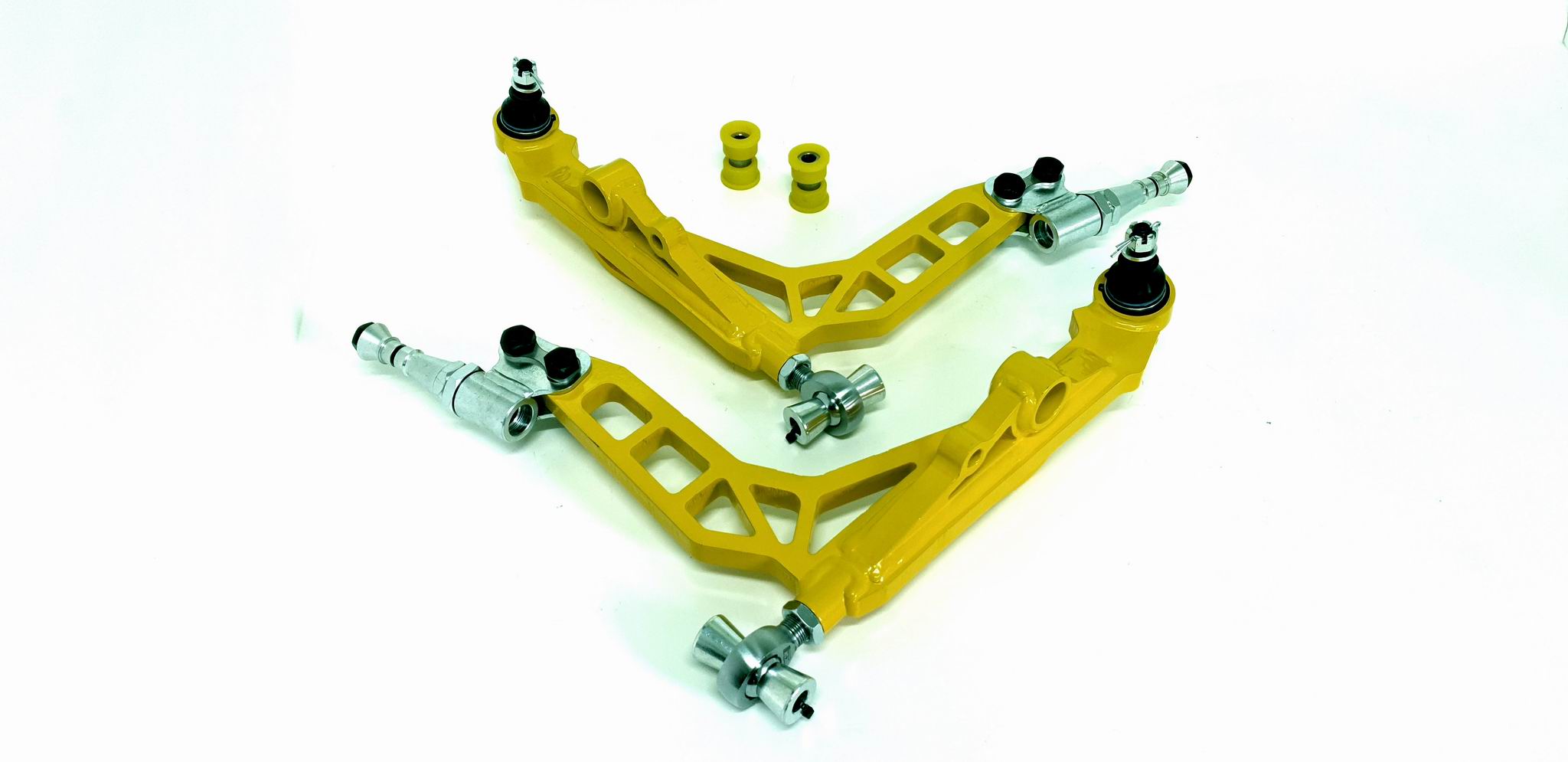

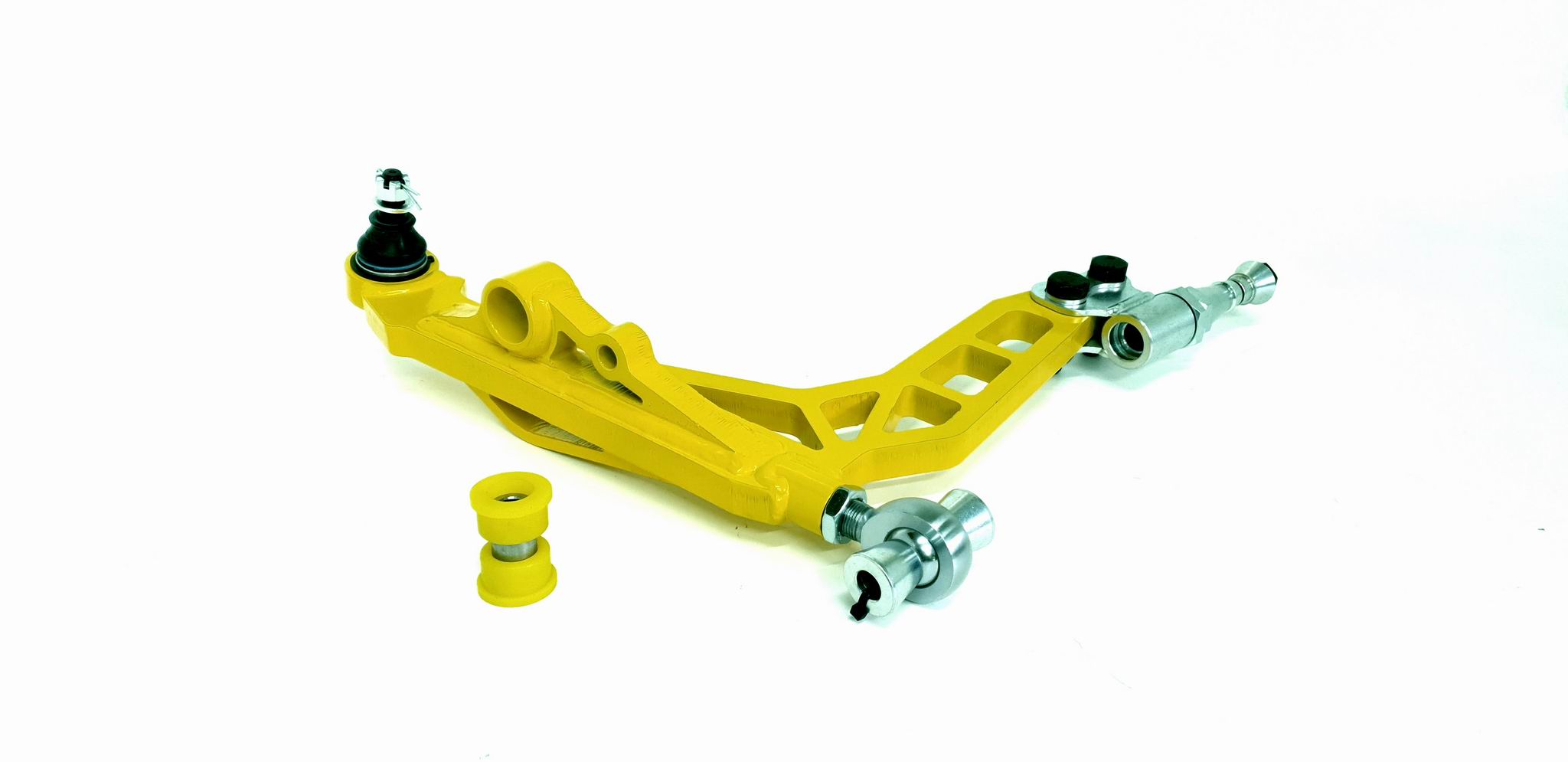

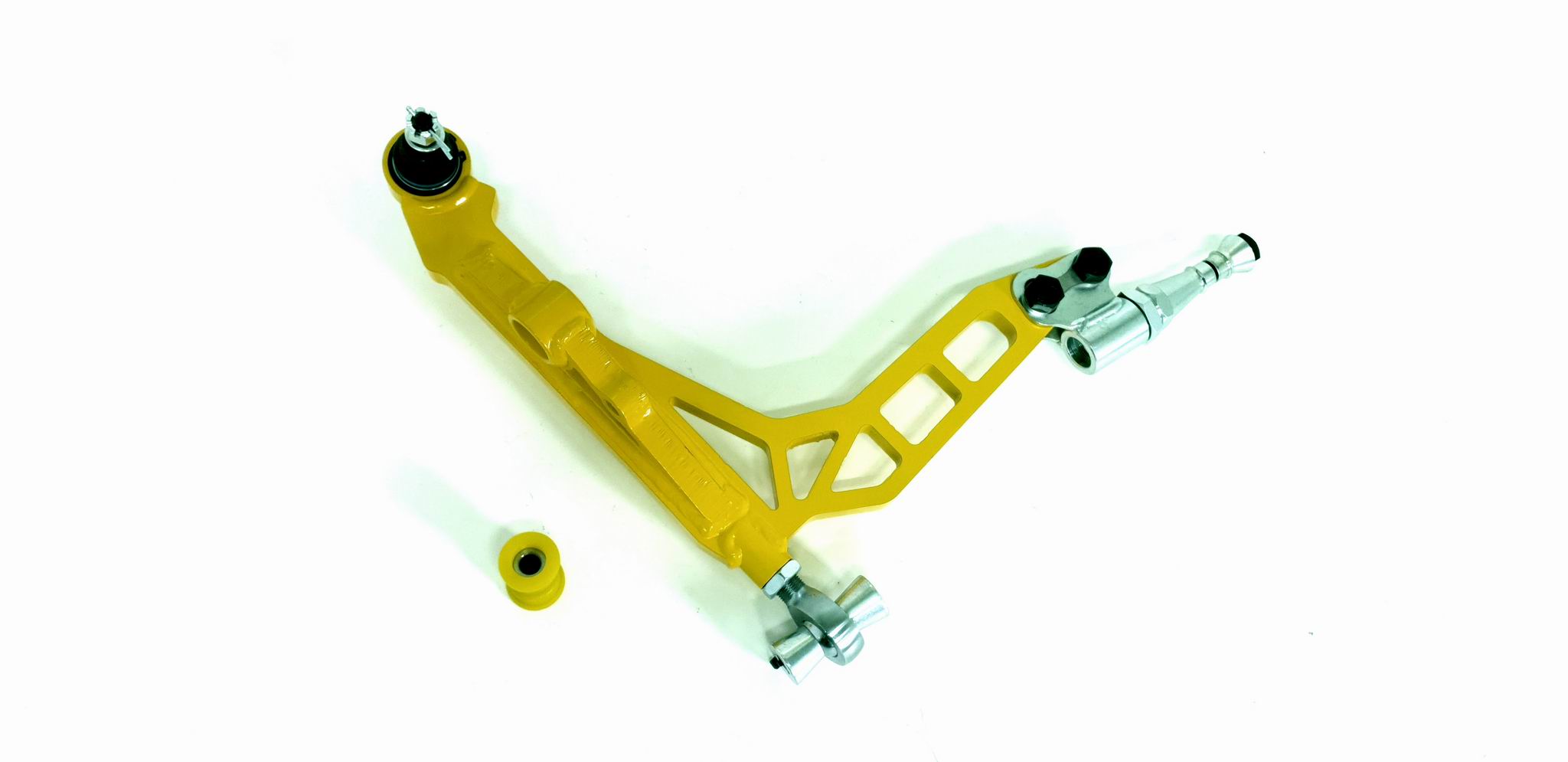

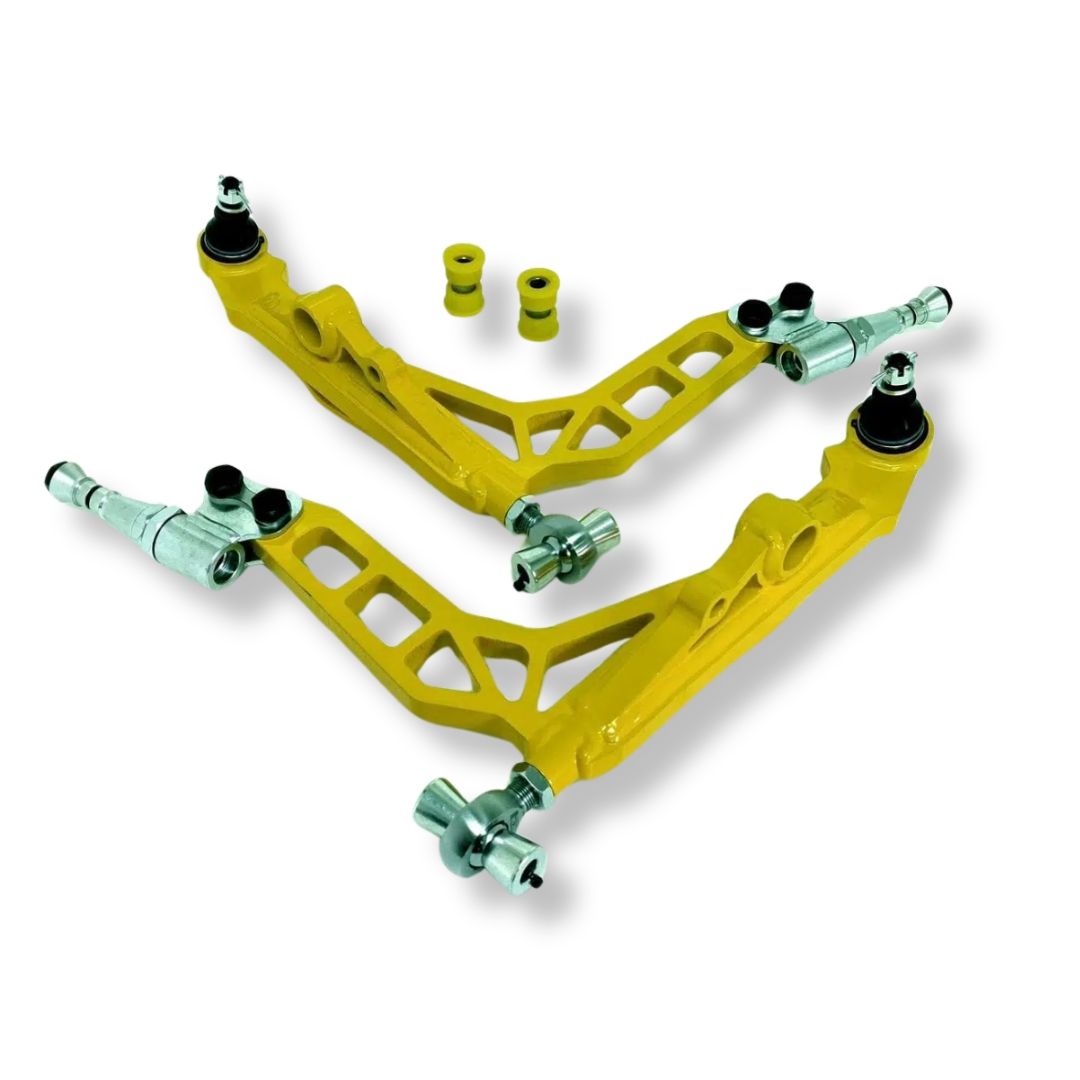

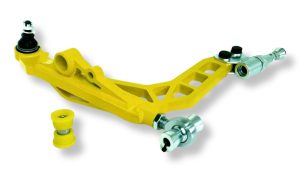

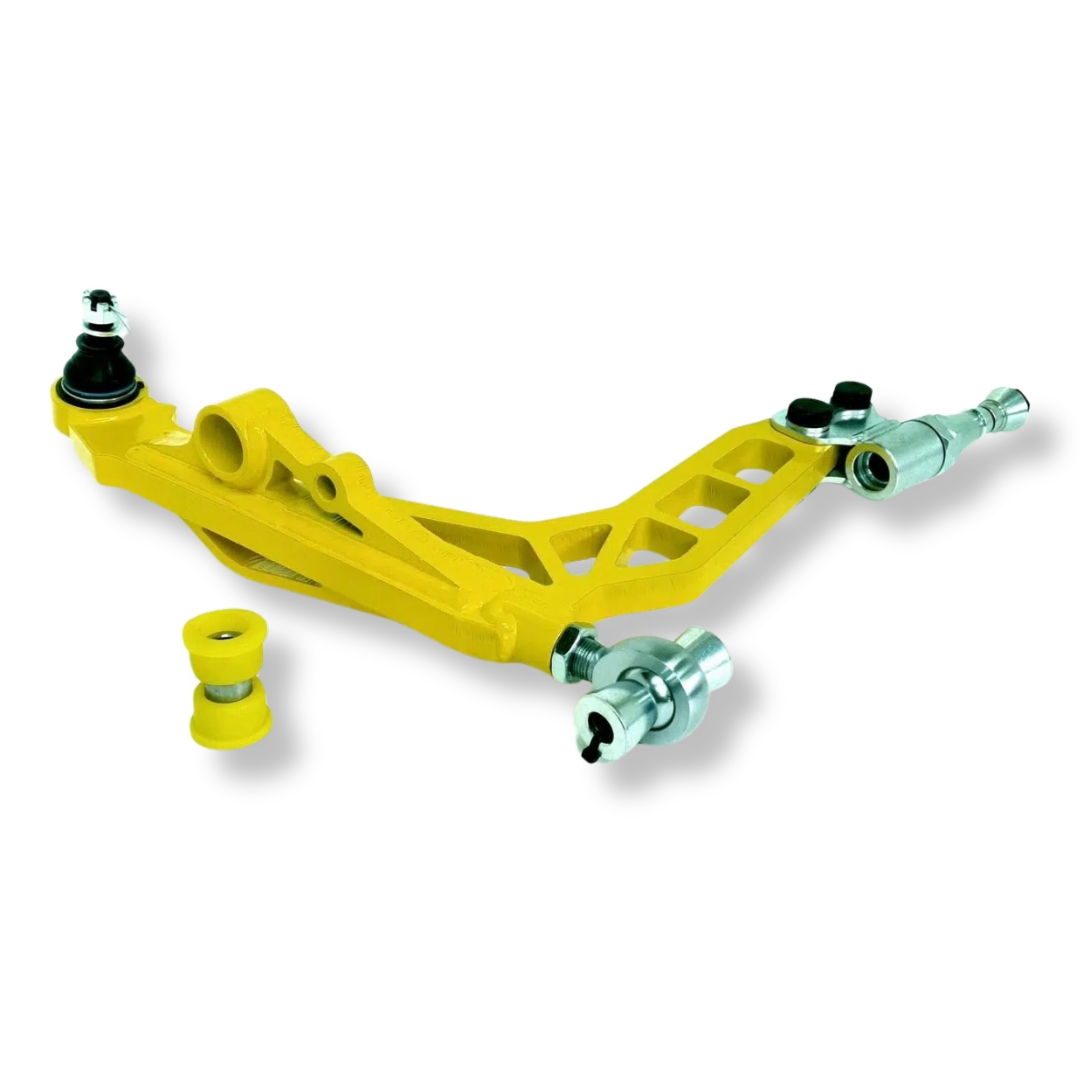

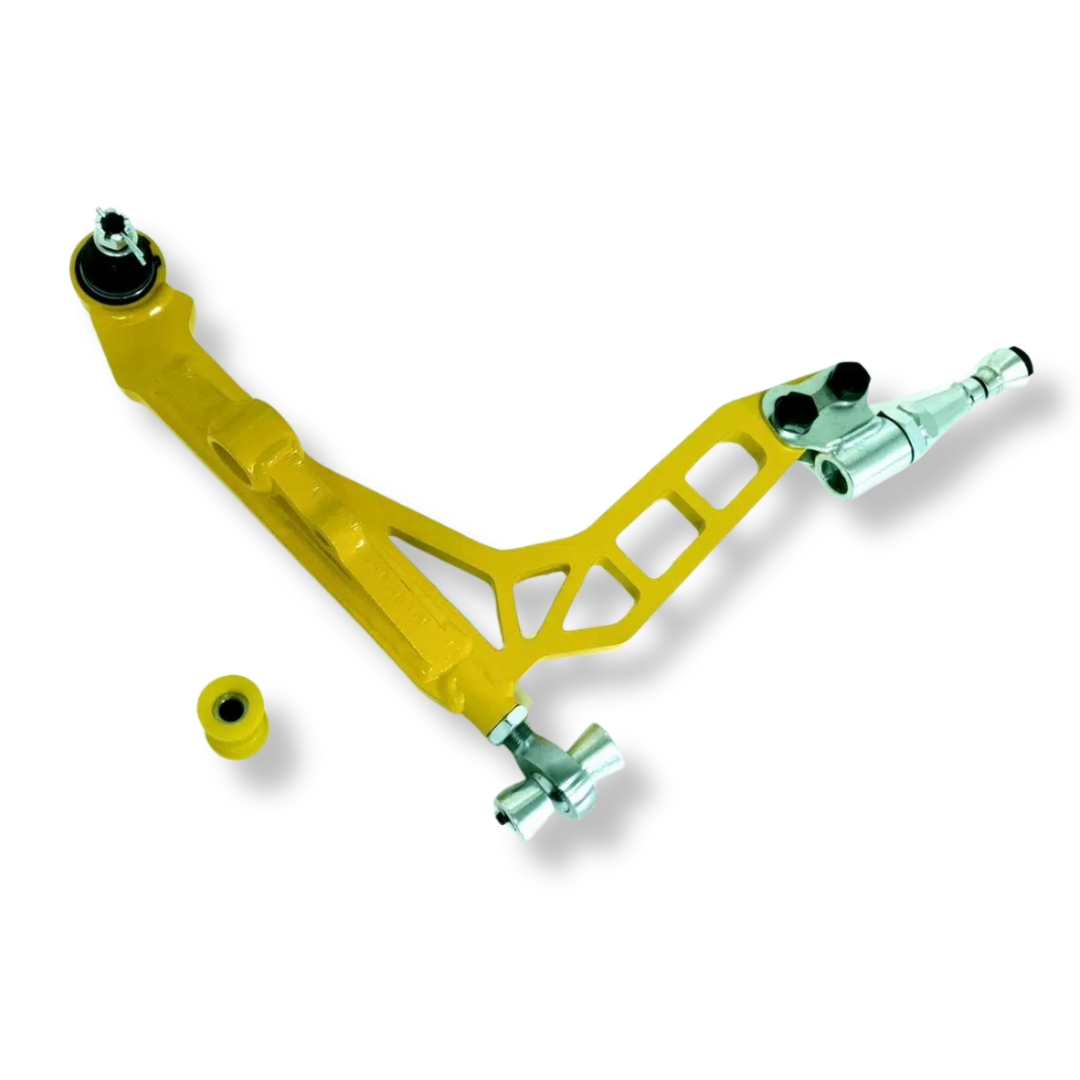

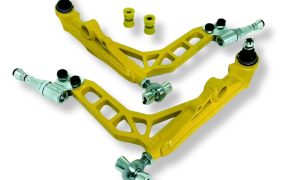

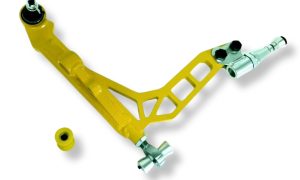

-2 adjustable lower arms

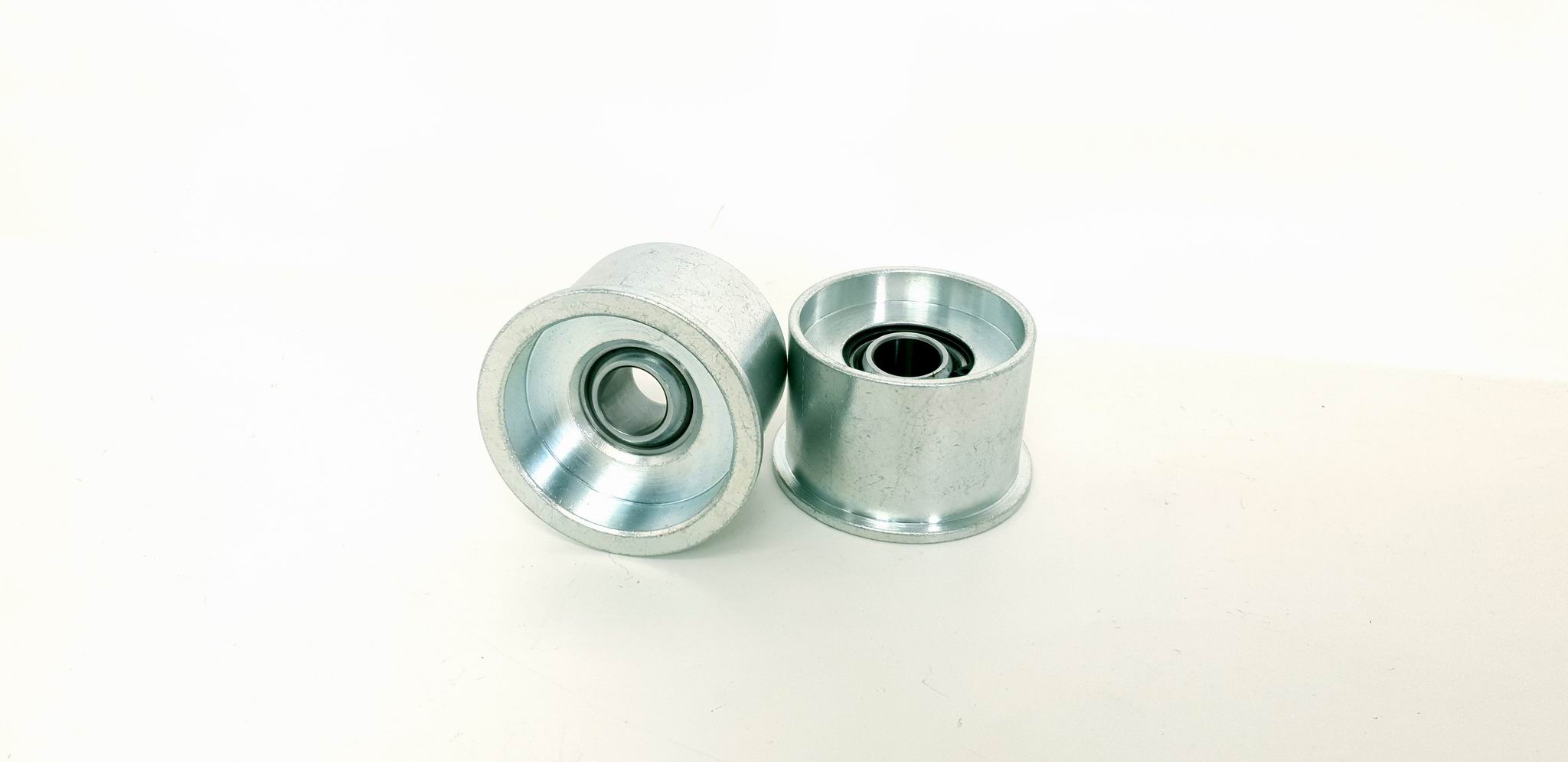

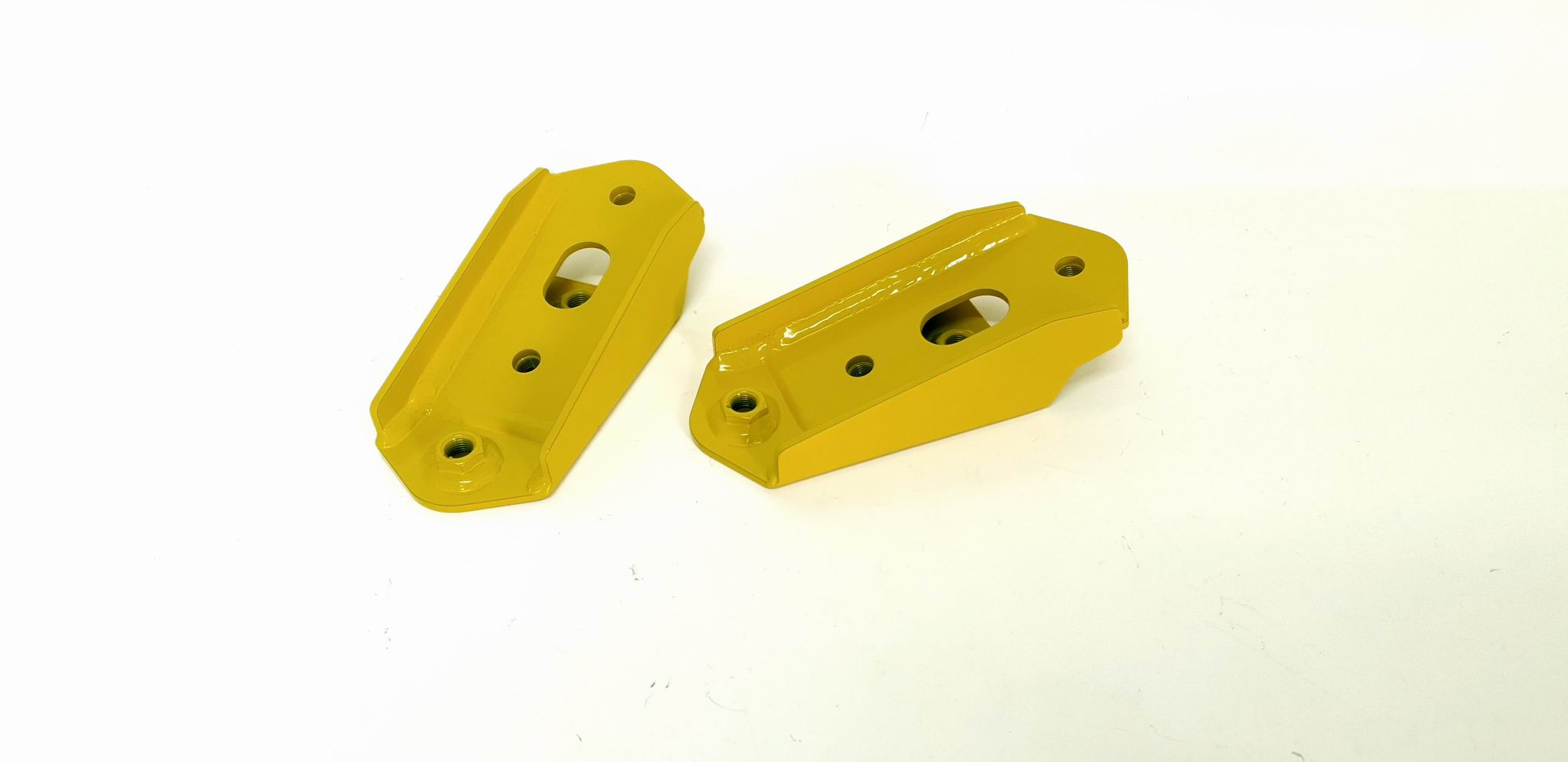

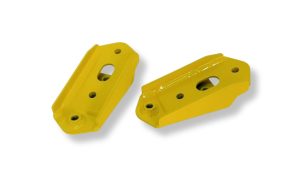

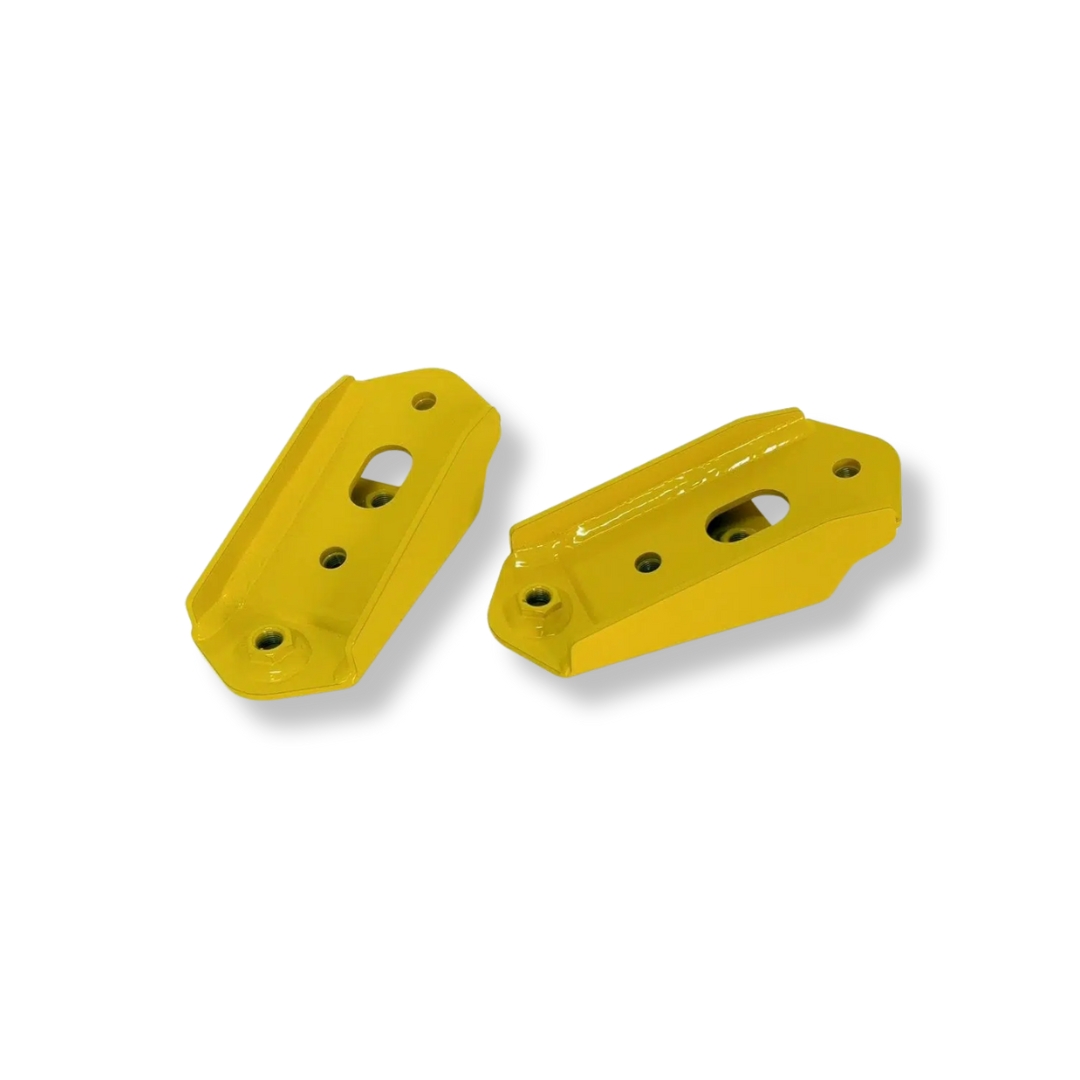

-2 rear mounts for front lower arms

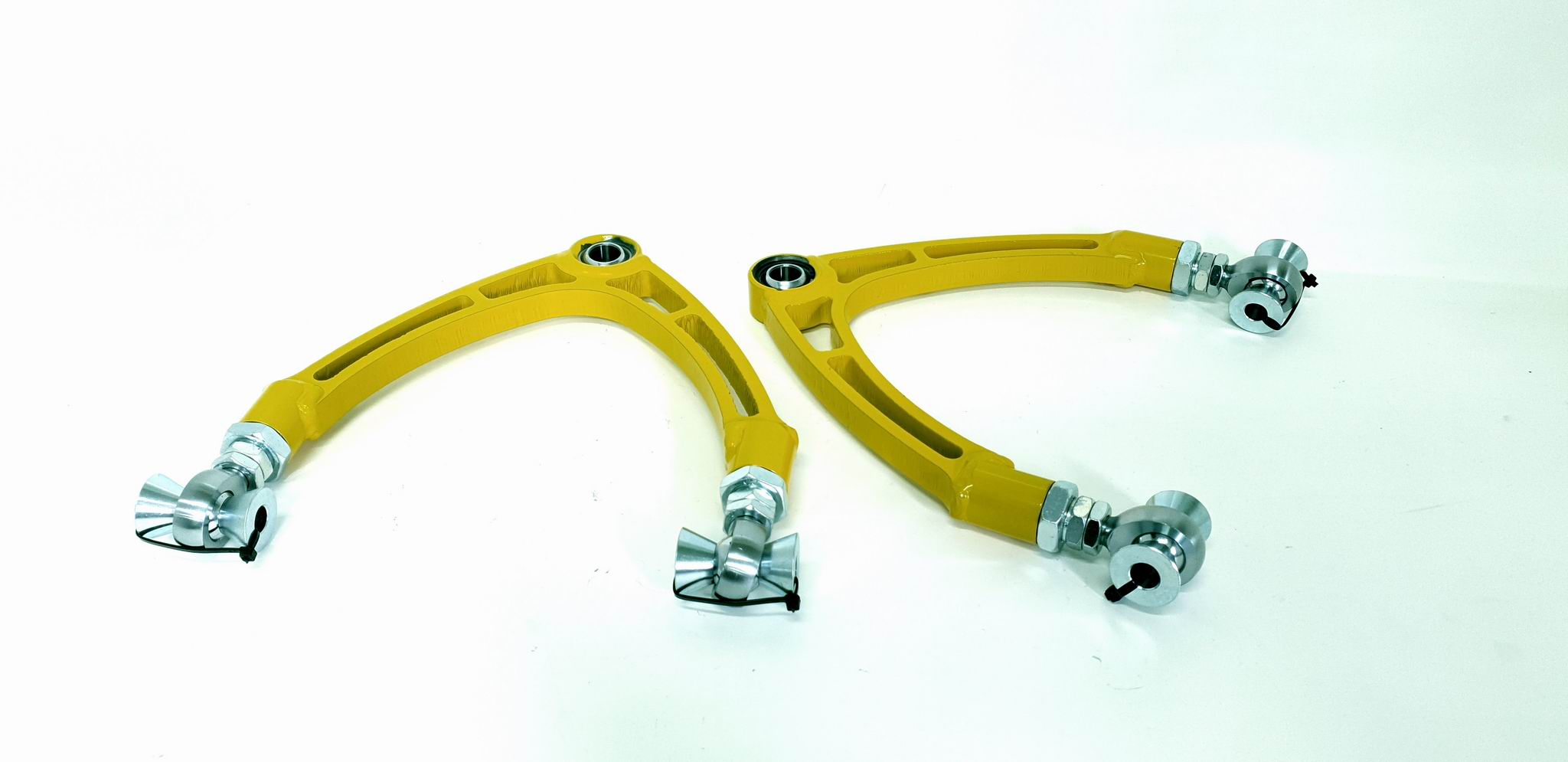

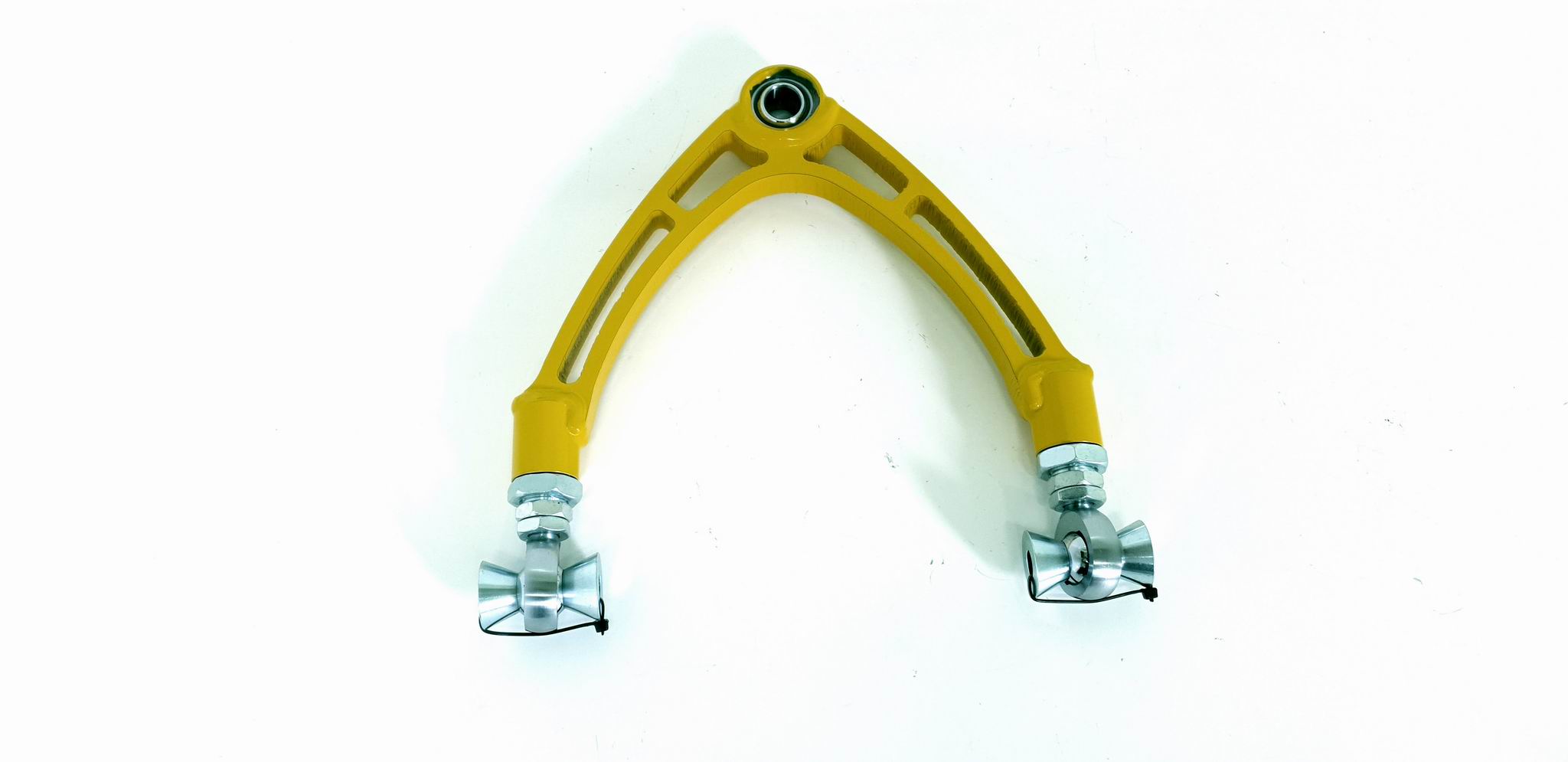

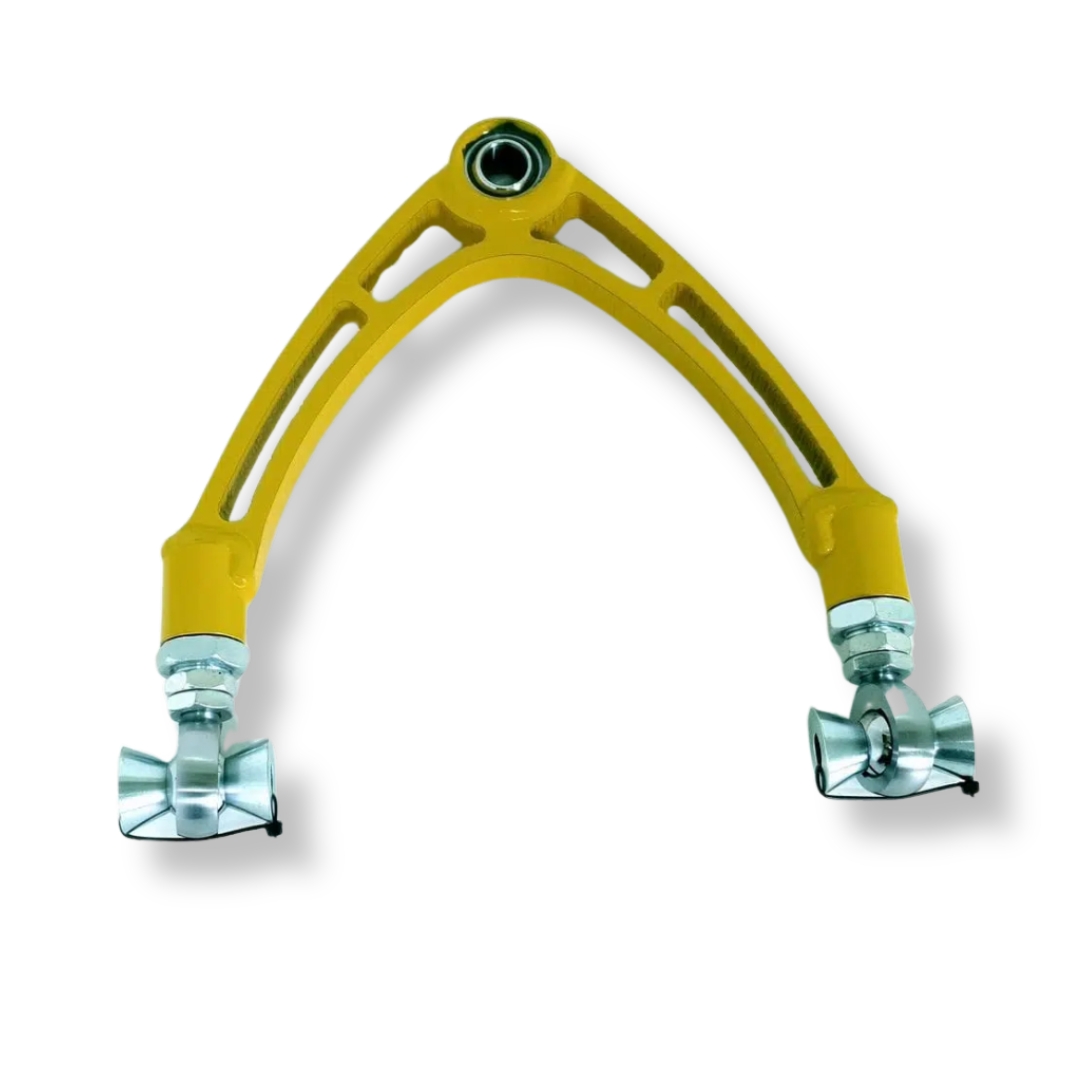

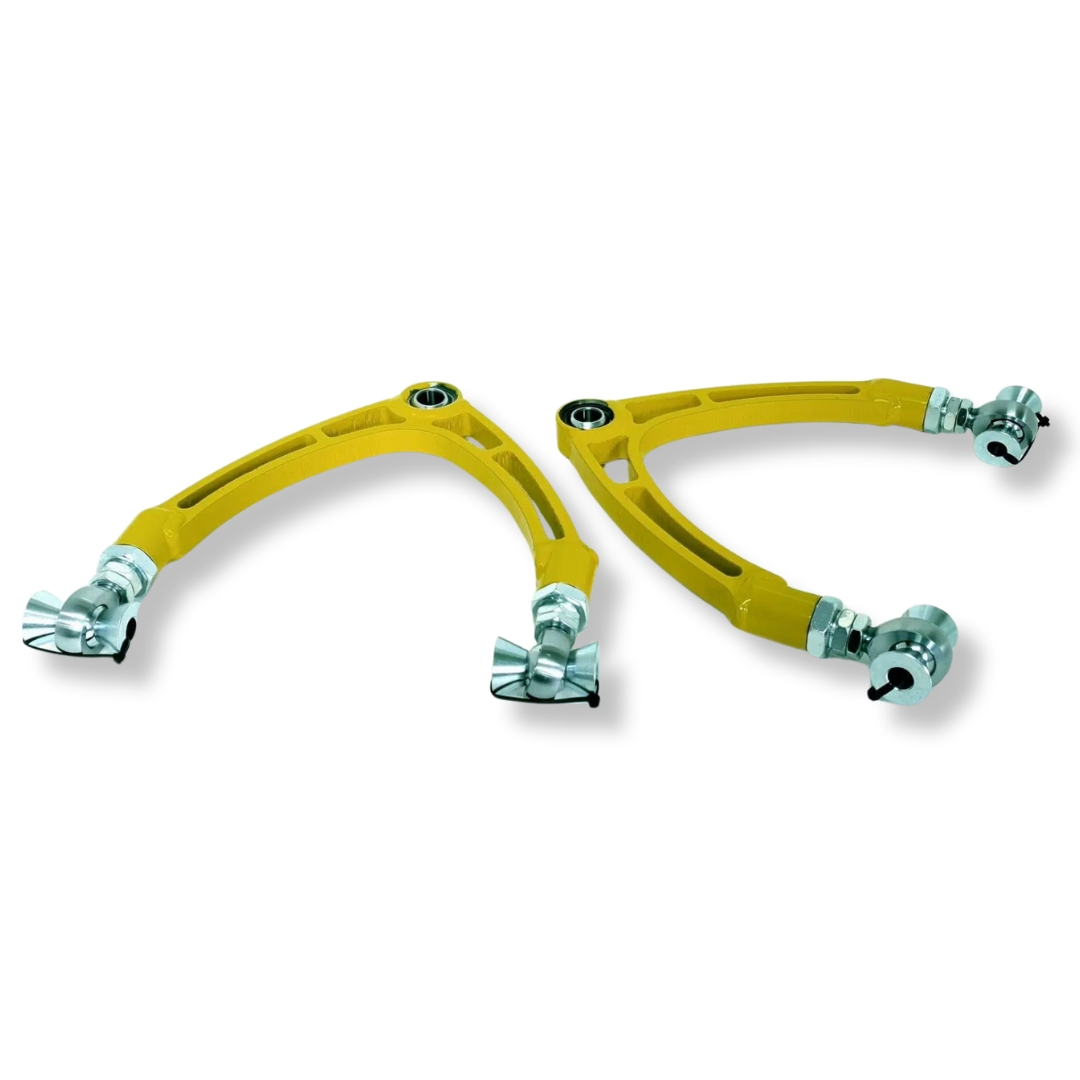

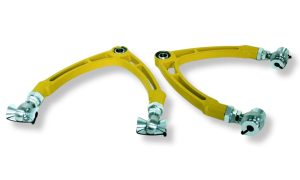

-2 adjustable upper arms

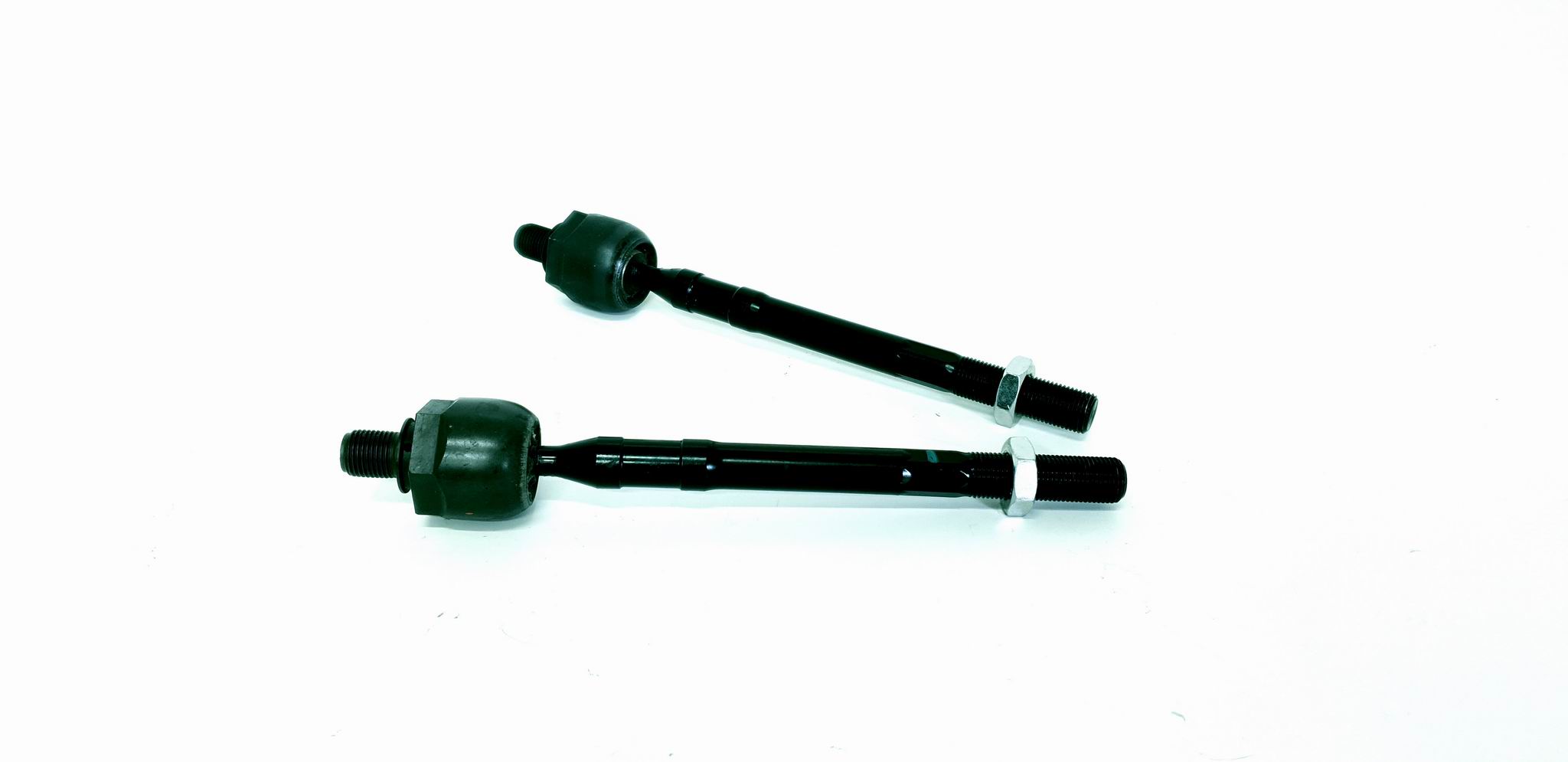

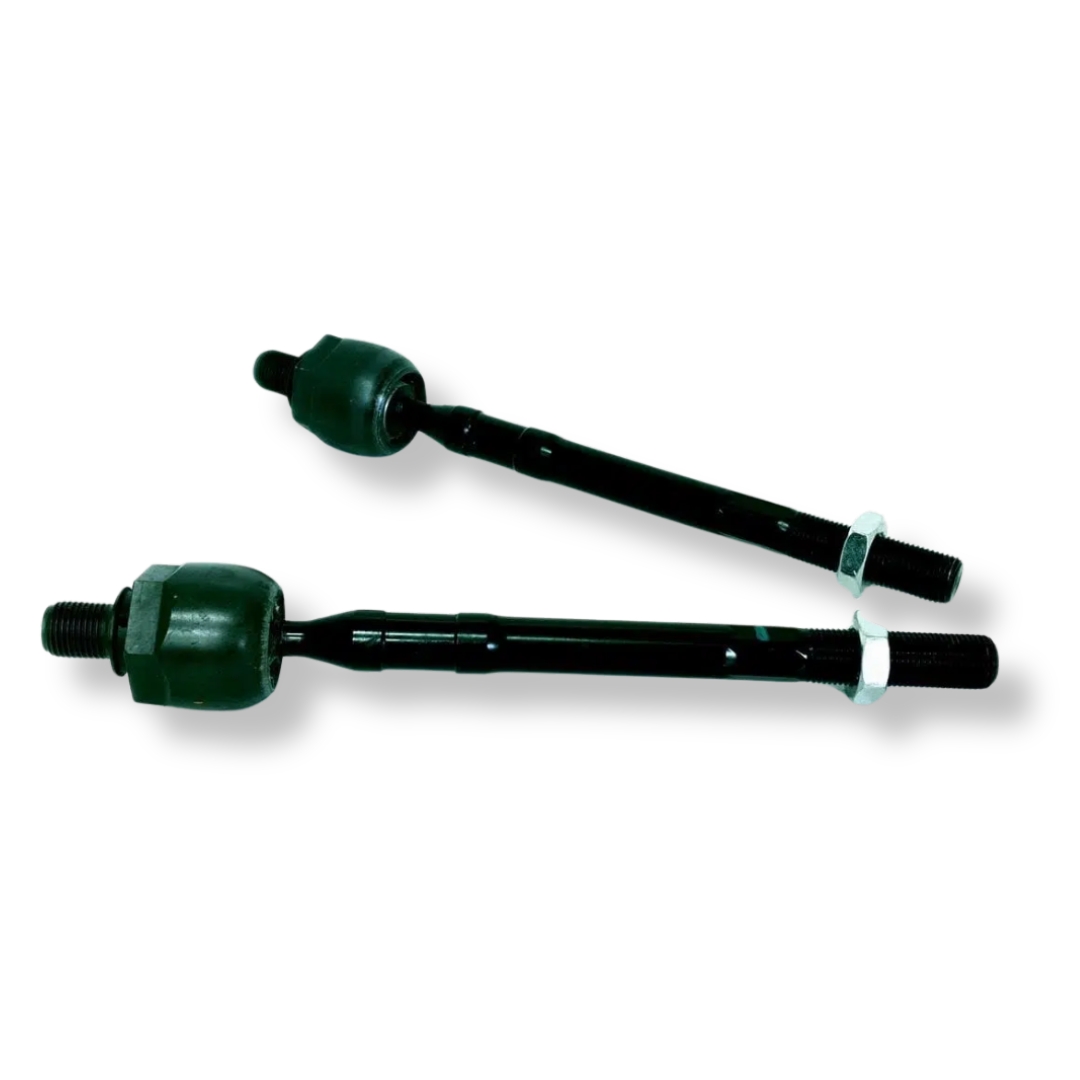

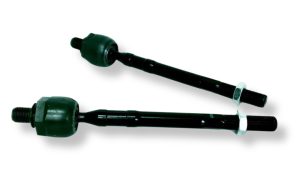

-2 tie rods with tie rods ends
-1 ackermann kit (32 locking plates)

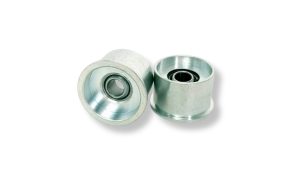

-1 bushinng for extended steering column shaft

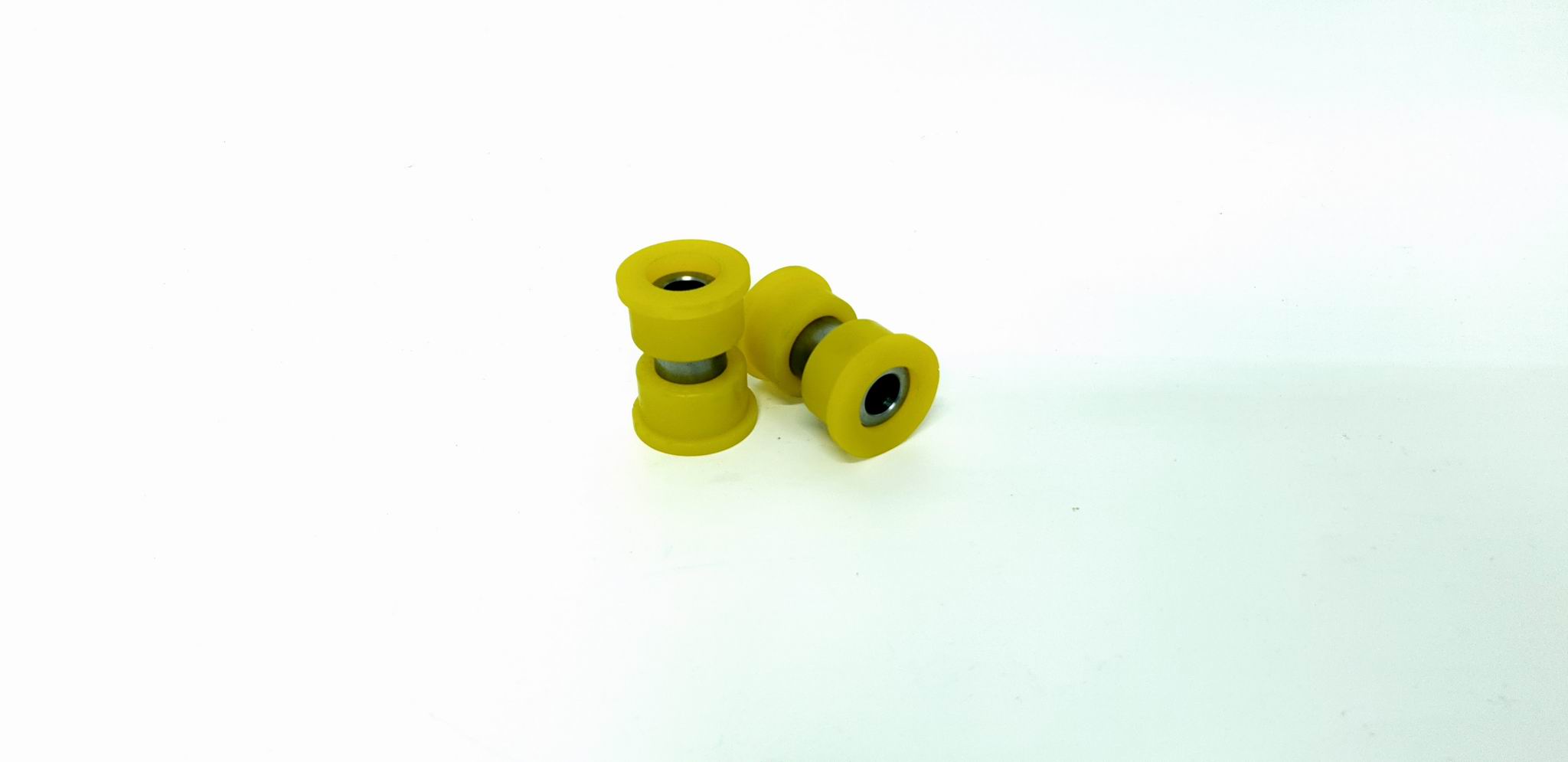

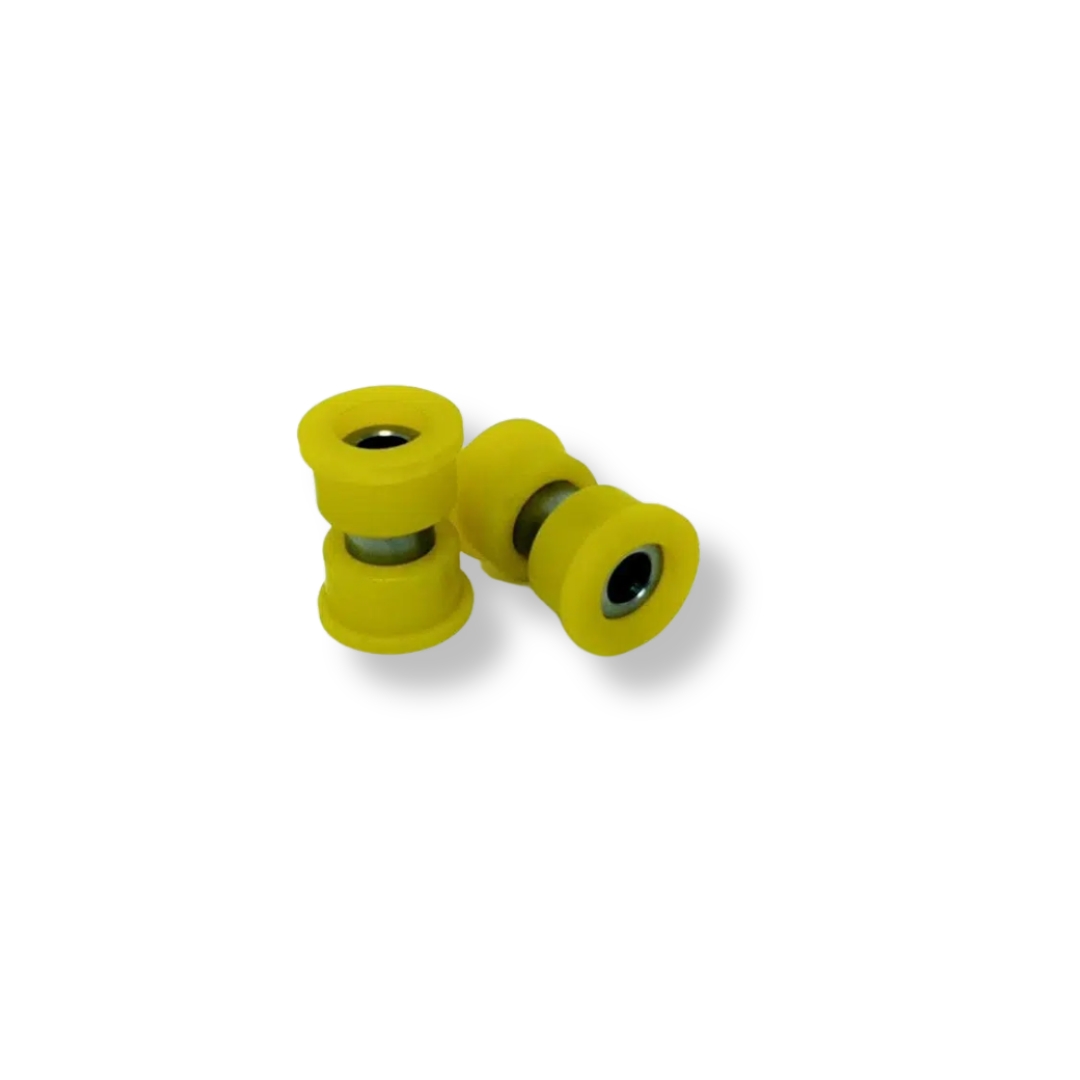

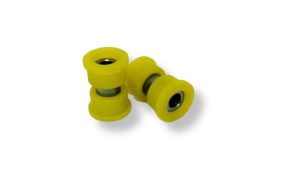

-2 poliurethane bushings for front lower mounts of coilovers
– set of bolts
This kit don’t require any subframe modifications.
Kit is working with coilovers designed for R35-GTR.
Steering column shaft has to be extended with our bushing.
steering rack is relocaded by 100mm to front from stock position
and the rack is 22mm higher than stock position.
VR38DETT Oil sump need to be modified.
Kit is designet for stock brakes and wheel hubs.
Stock brakes wouldn’t fit into 18″ wheels.
We can made this mounts smaller but the brake adapters will be
on customer’s side.
