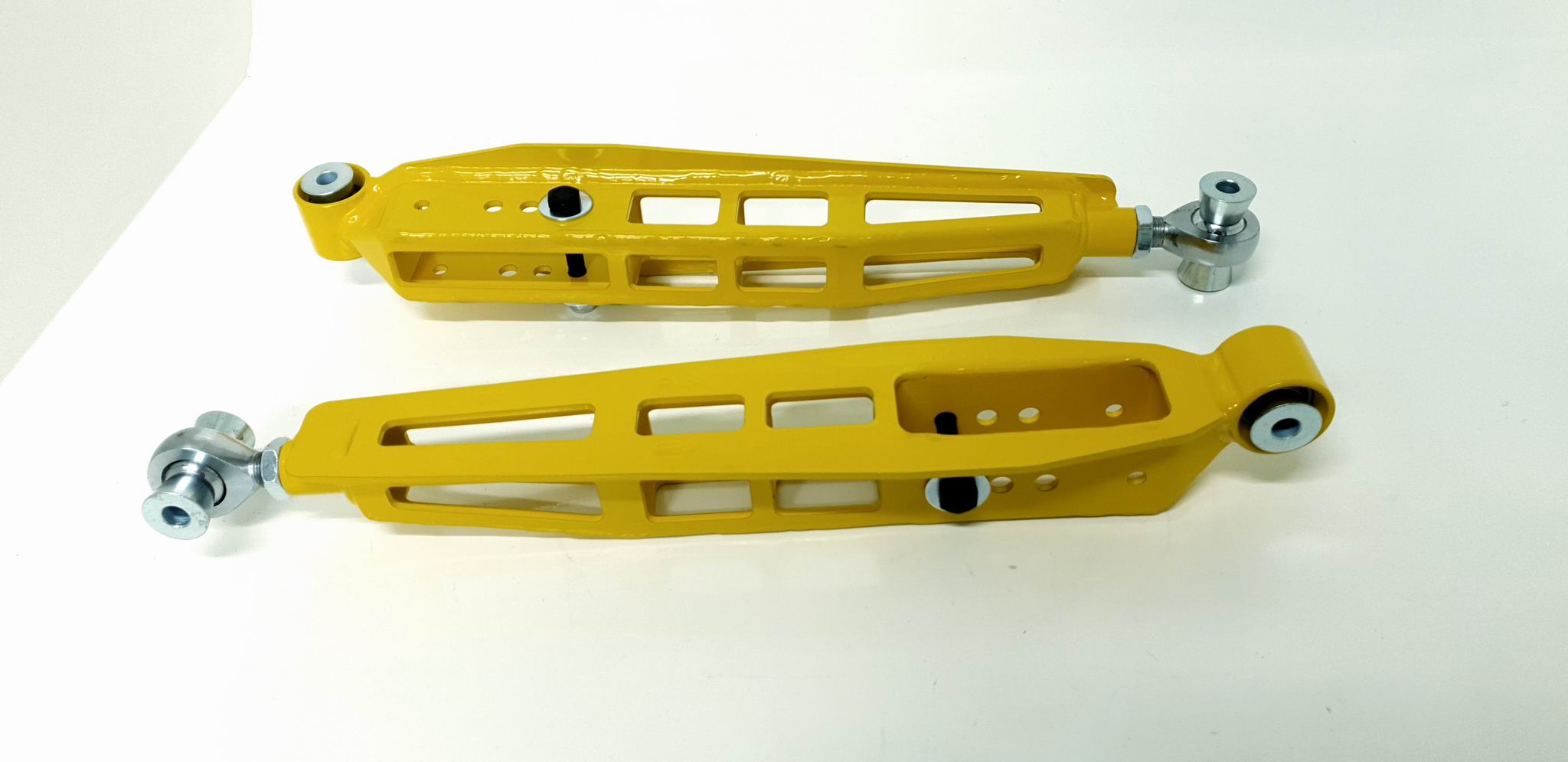

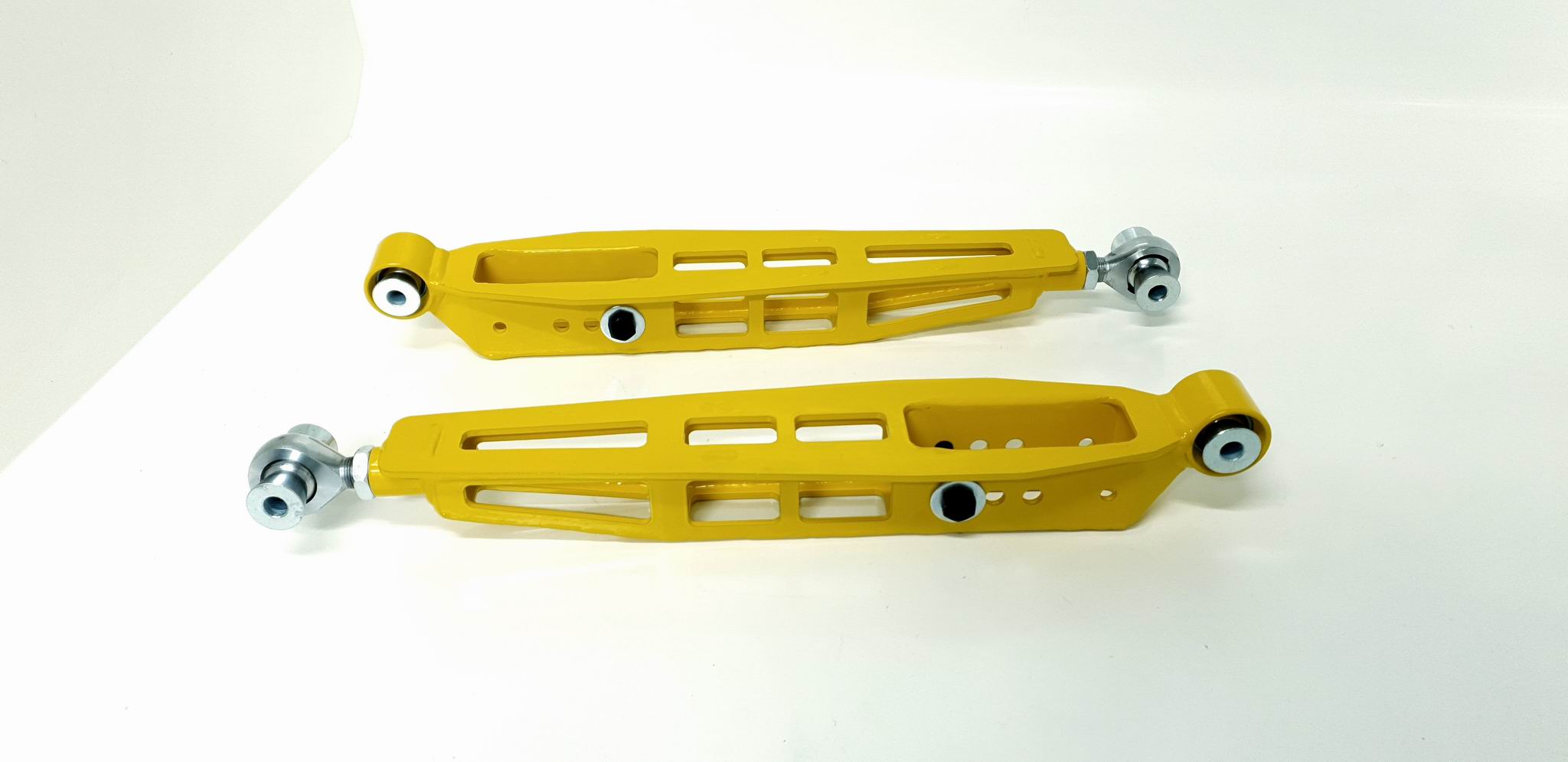

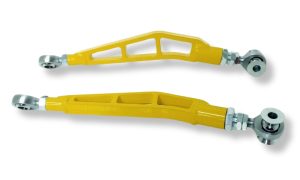

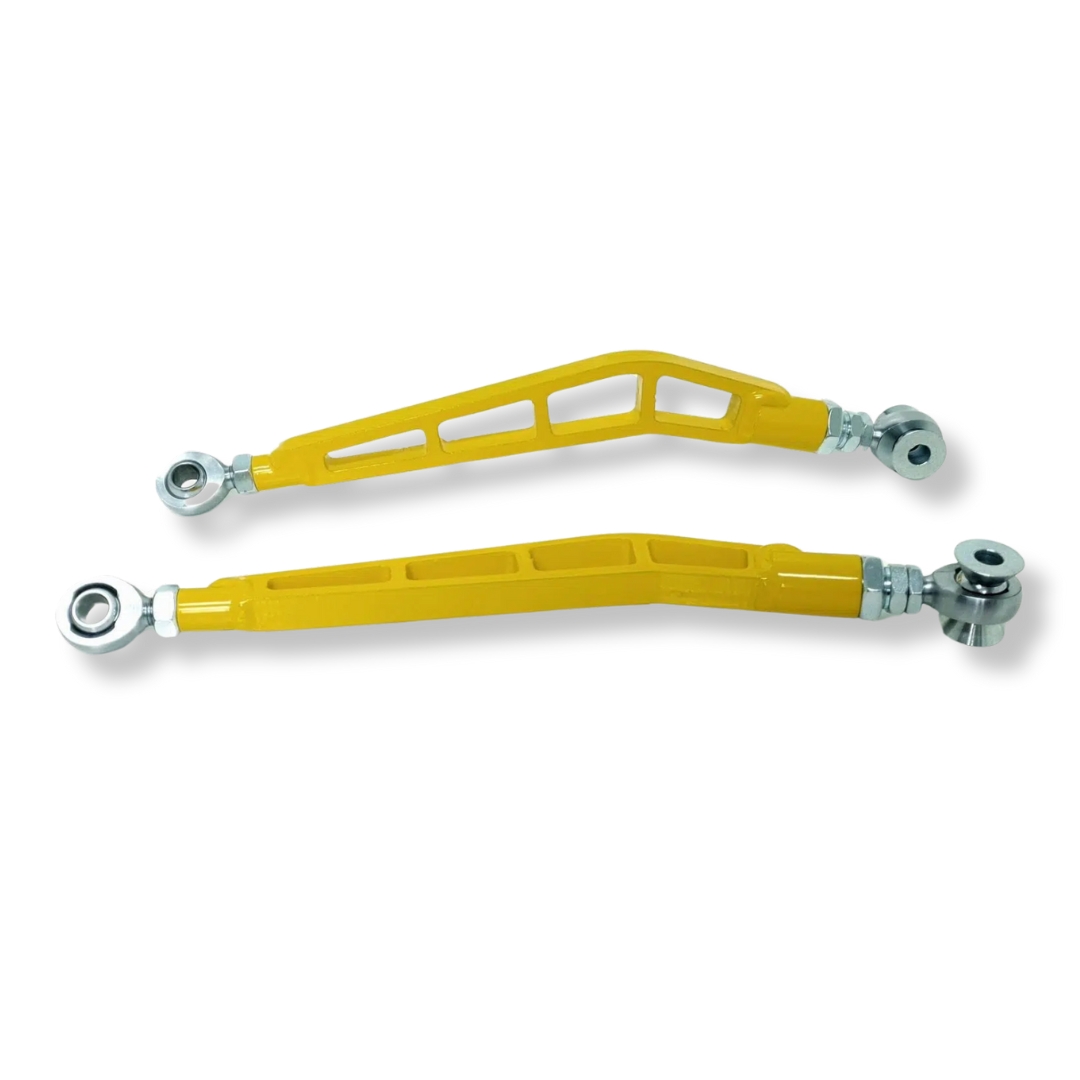

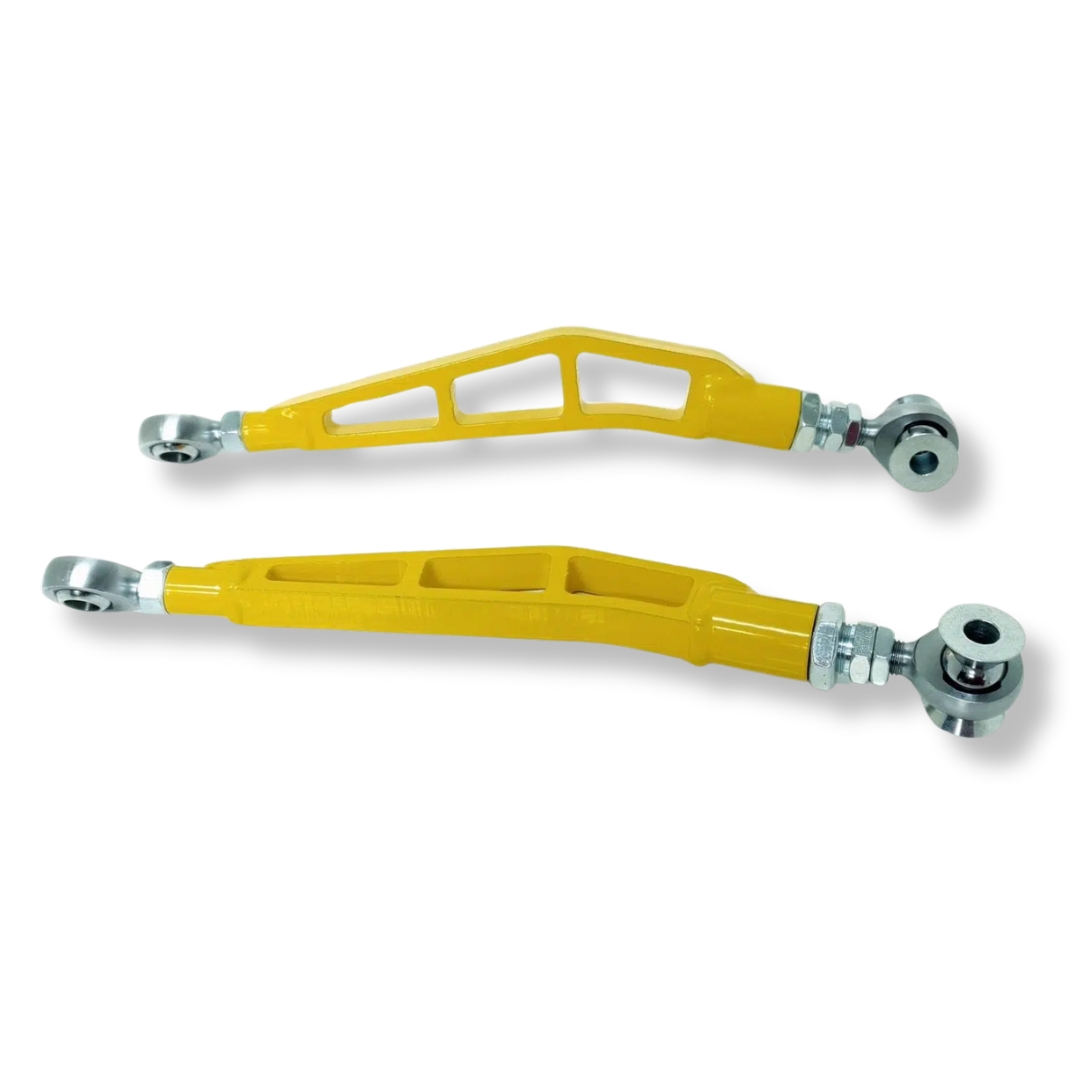

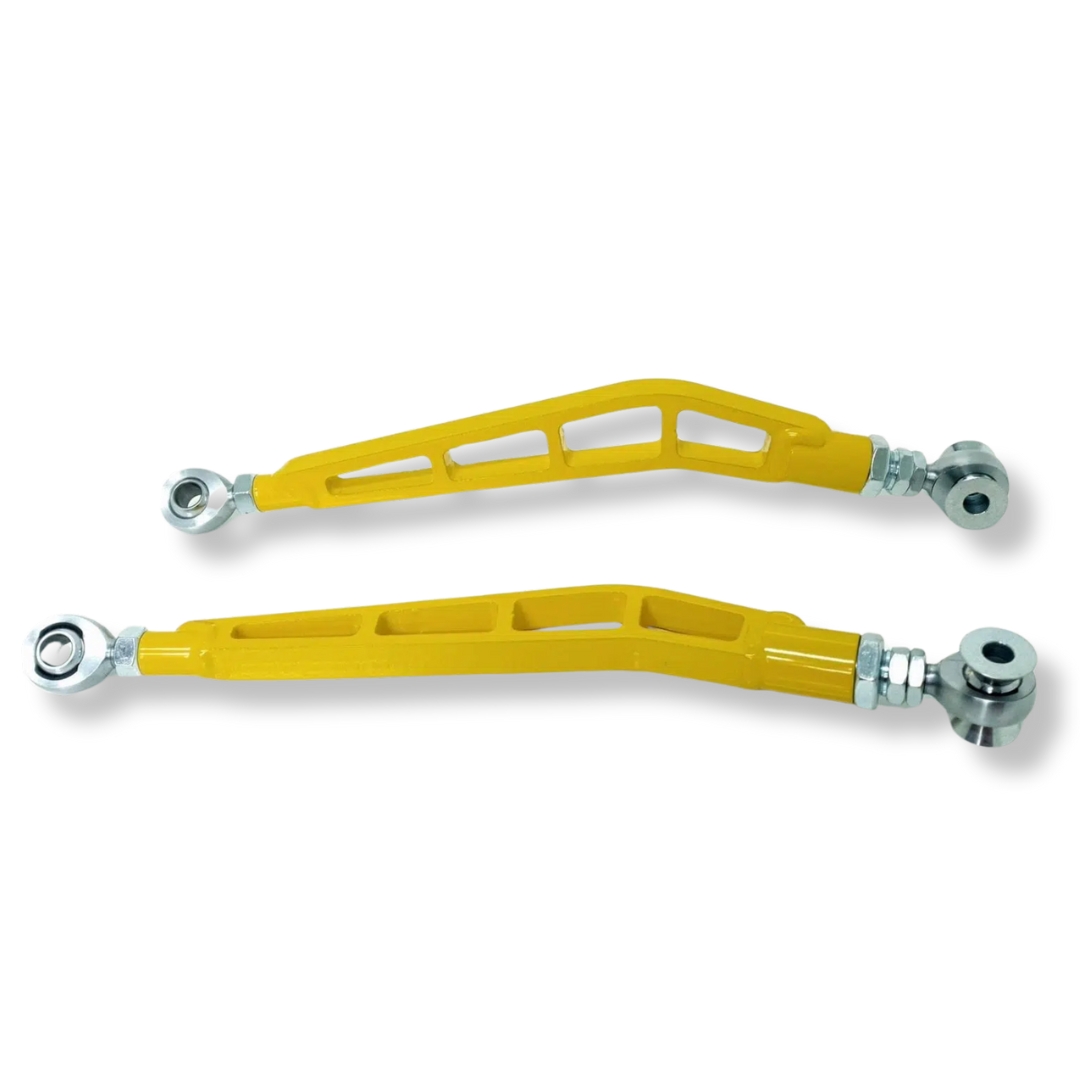

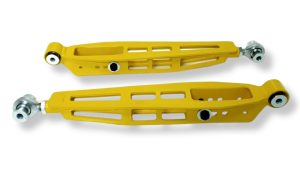

Rear kit for Mercedes W203/W209 for macpherson coilovers

Kit is fully adjustable.
Kit has a much better geometry than the stock suspension and mounts for 2 brake calipers per wheel.
There is a regulation in the knuckles that allows the rear torsion to be set.
(during body tilting, RWS is created)
You can also set the neutral works of the suspension and many other parameters to obtain perfect traction.

The brakes mounts are made for 2 calipers per side for stock brakes from all mercedes W203/W209.

Wheel bearings fit from all mercedes W203/W209.

Minimum 17“ wheels required.

The set is wider by 45mm per side, which eliminates the need for large wheel spacers and
significantly improves driving properties. It is necessary to fit some other or custom made new axles.

Extra info from us:

For winters diff we advise you to use BMW E90/E92 M3/335i rear wheelhubs (Brand new are available in many parts shops). BMW wheel hubs fit to merceders rear bearings without any modifications, except bolt pattern, both cars have same diameter inside wheel bearings .  For set with bmw wheelhubs we advise to use BMW 750i rear axles for winters diff, this axles are available brand new in many parts shops. Winters/axles adapters for bmw 750i axles has to be 69mm height.

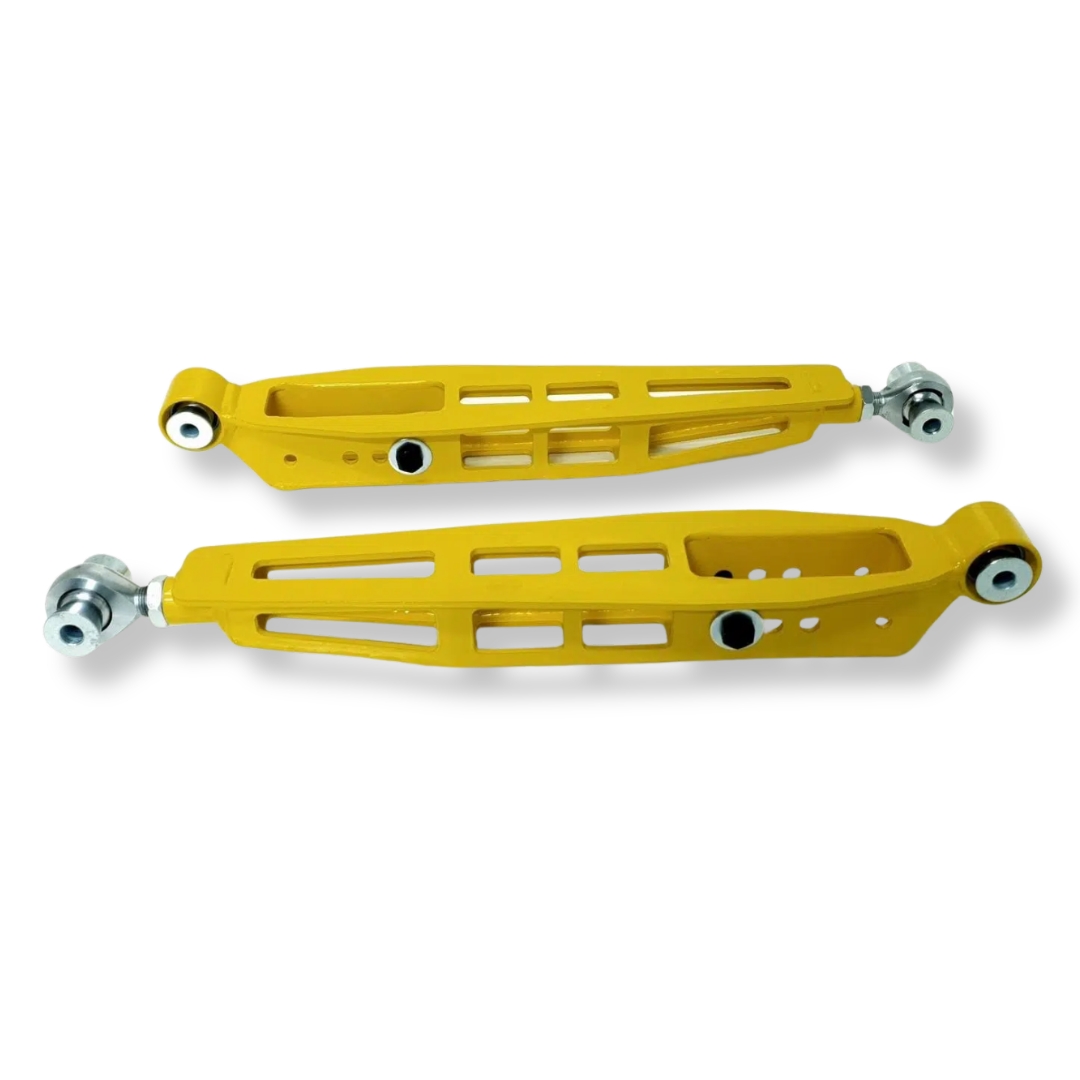

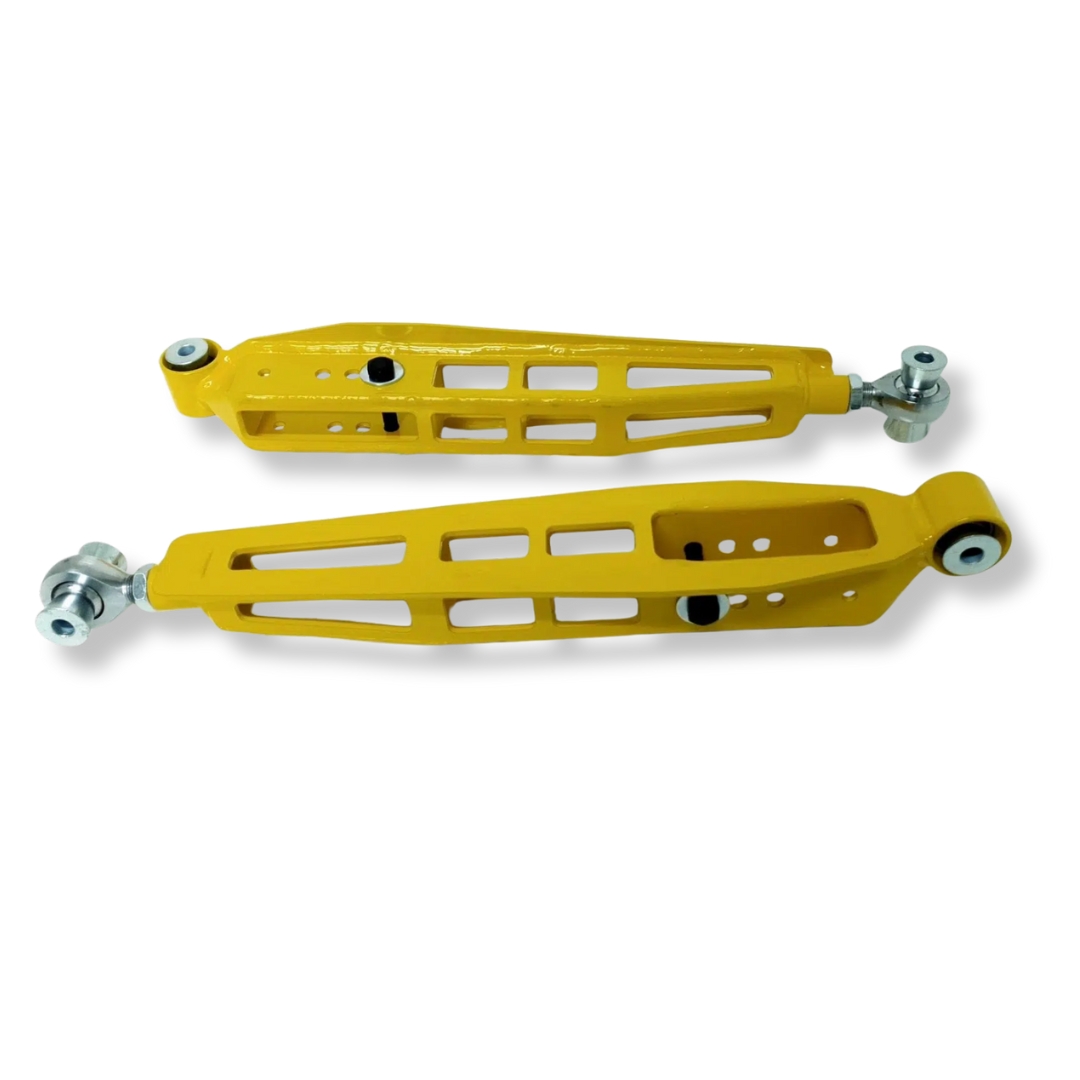

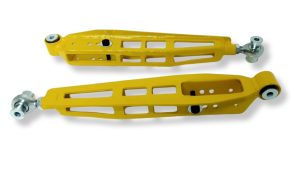

The kit can be ordered with lower arms for separate springs coilovers, please check in our products.

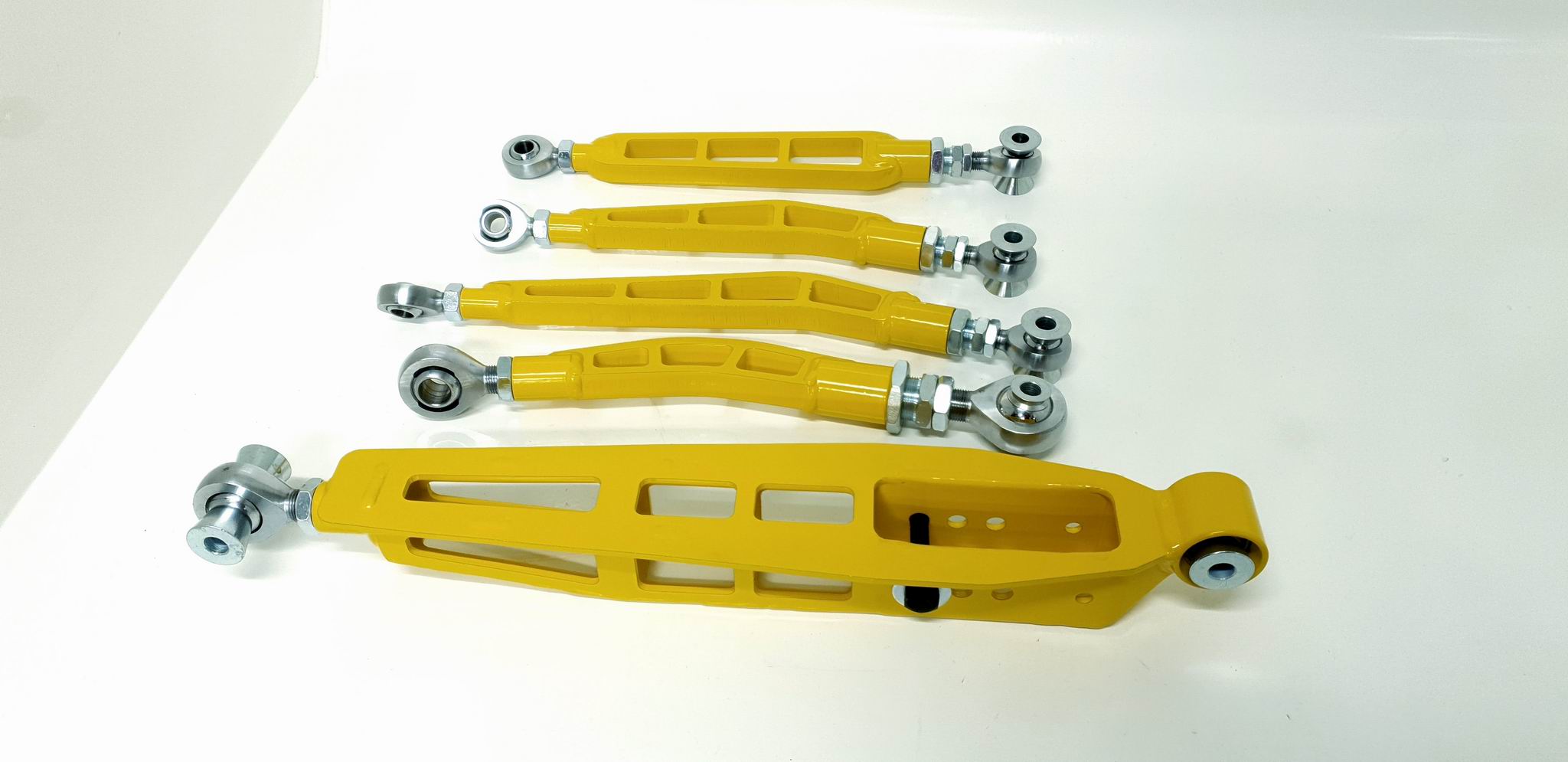

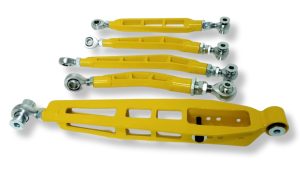

Kit include:

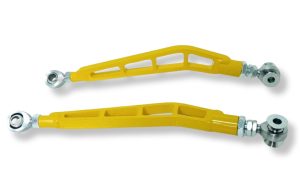

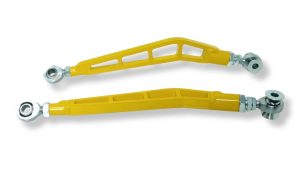

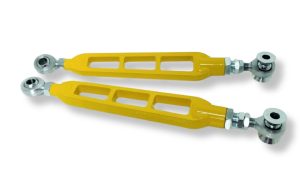

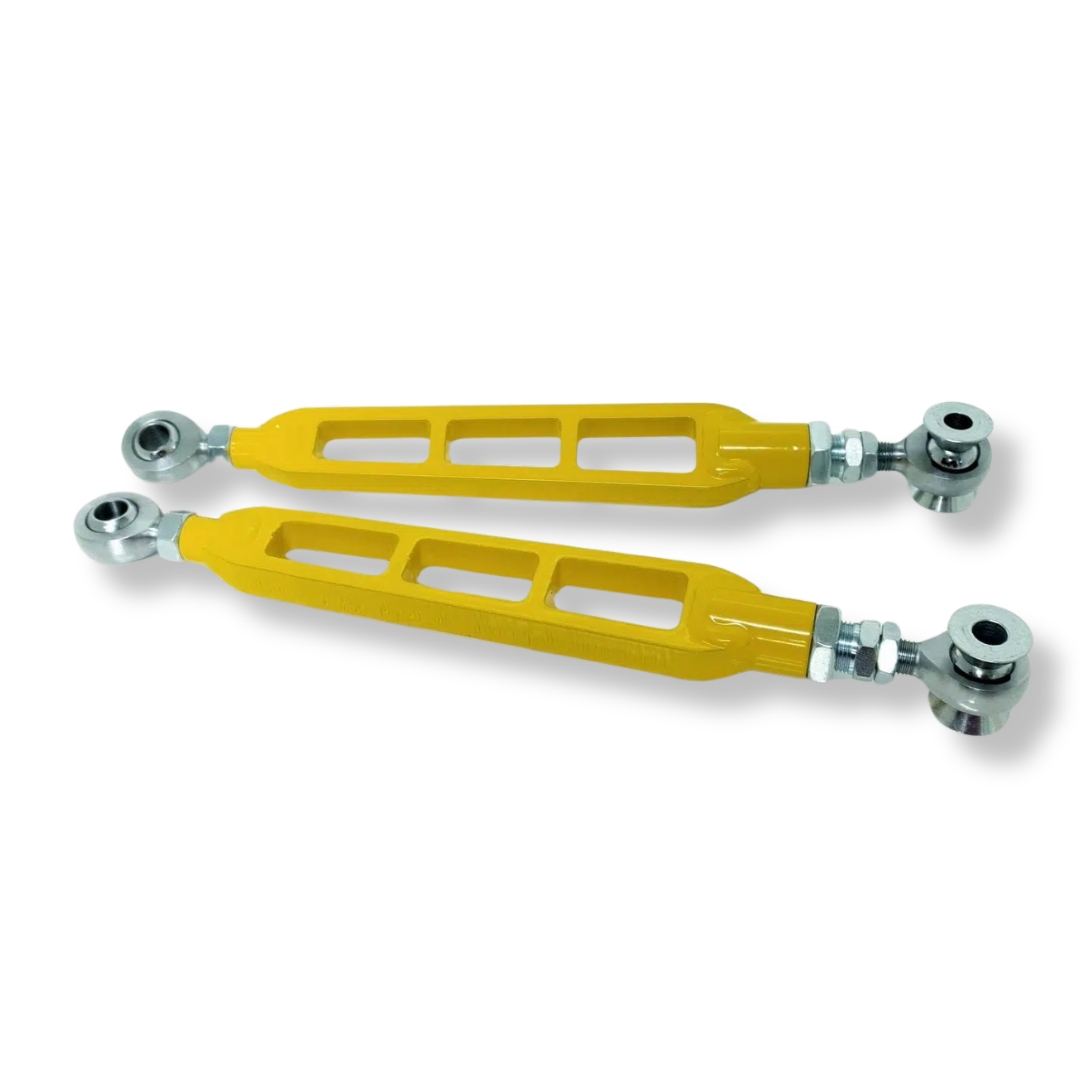

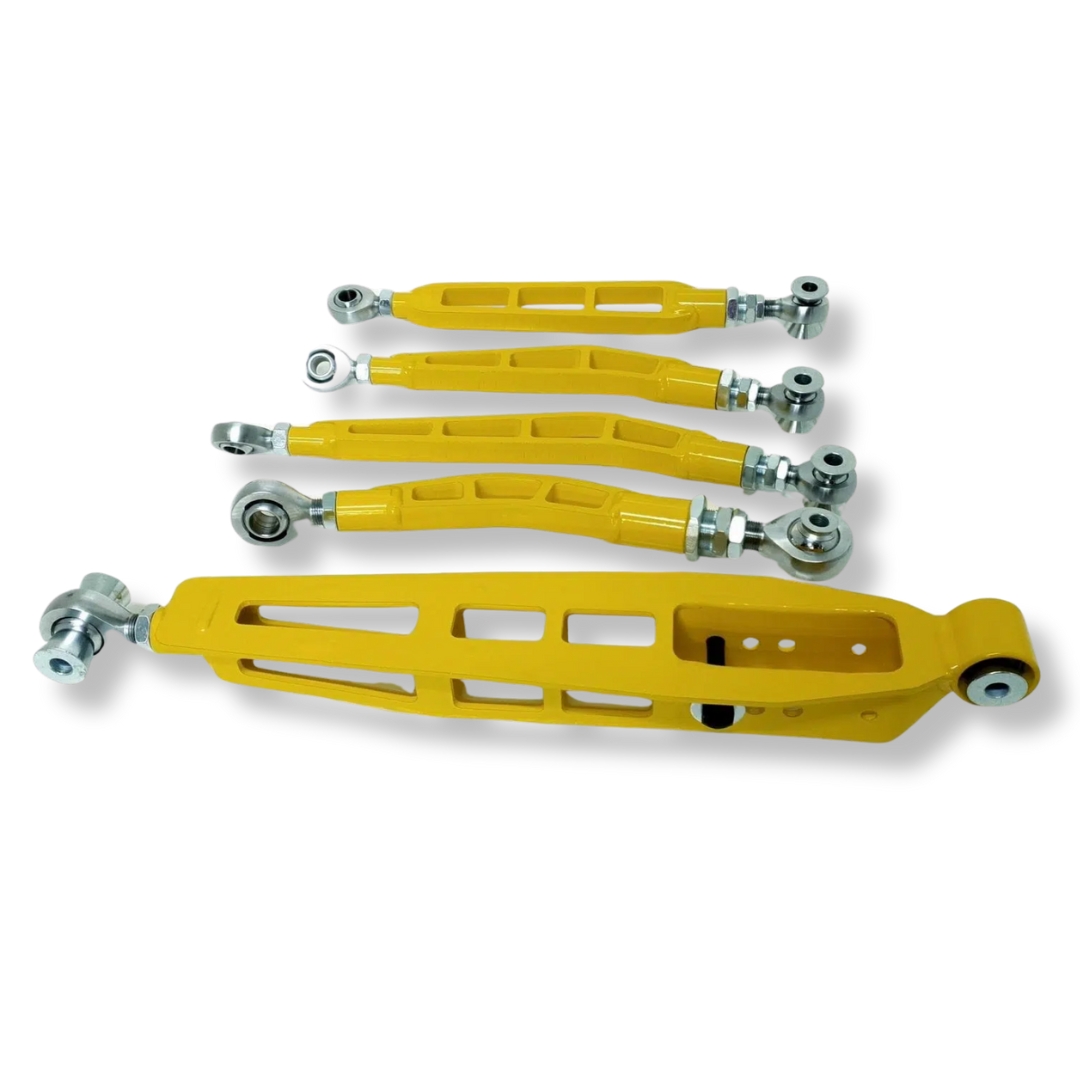

-10 arms, including 8 adjustable

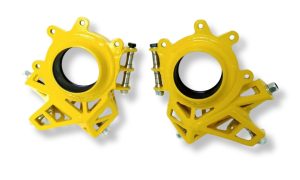

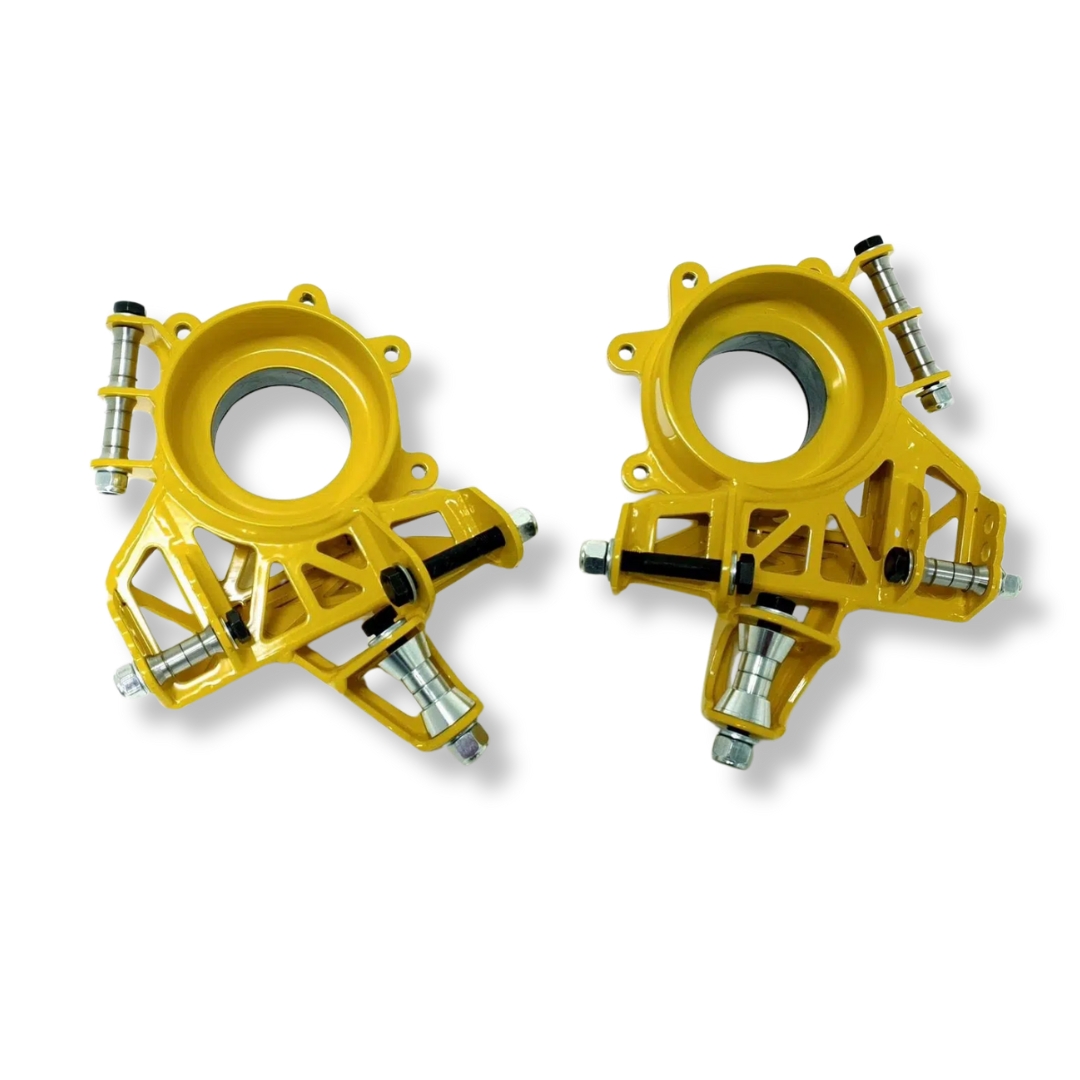

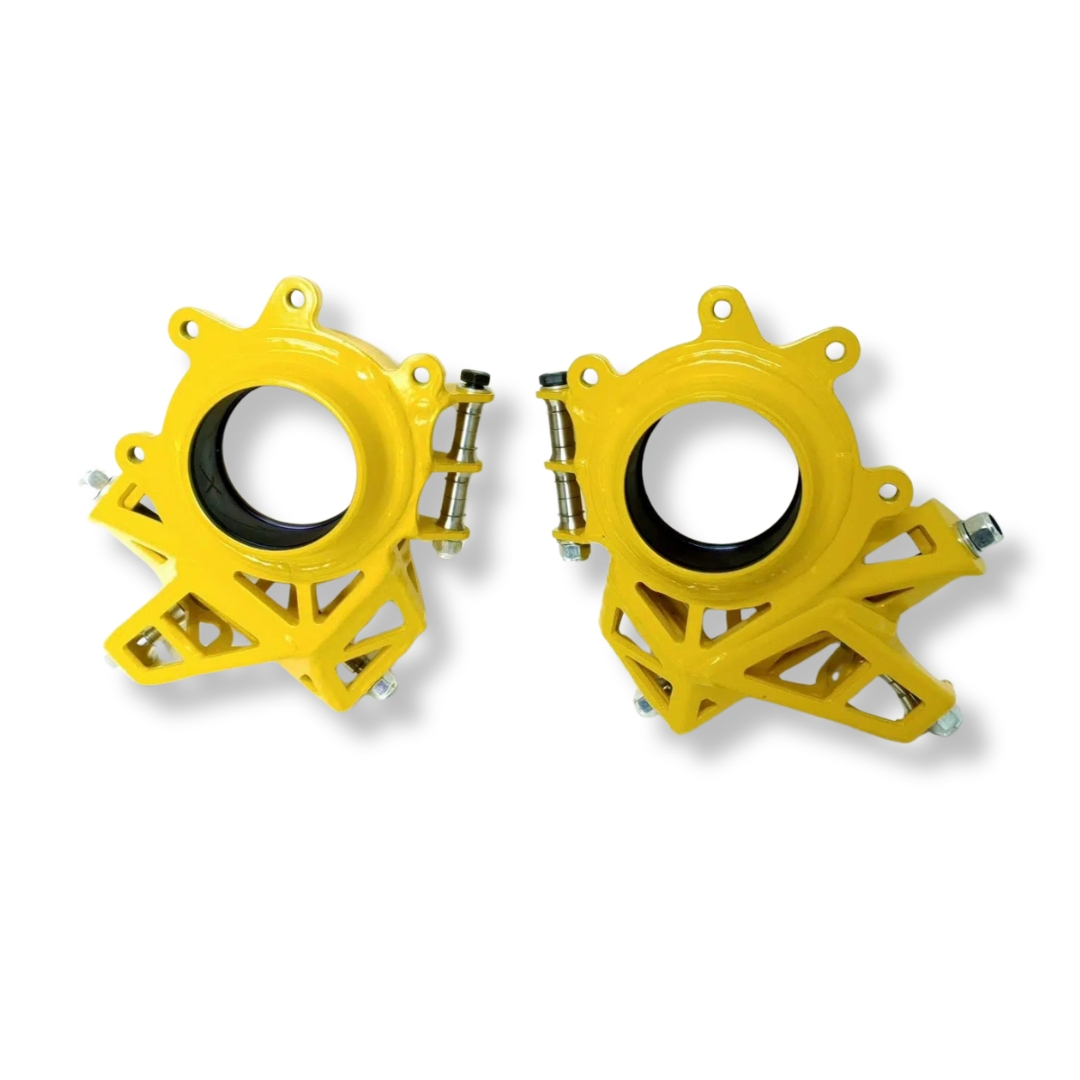

-2 knuckles

-set of bolts

In the absence of stock, the waiting time for kit is 4 weeks.
